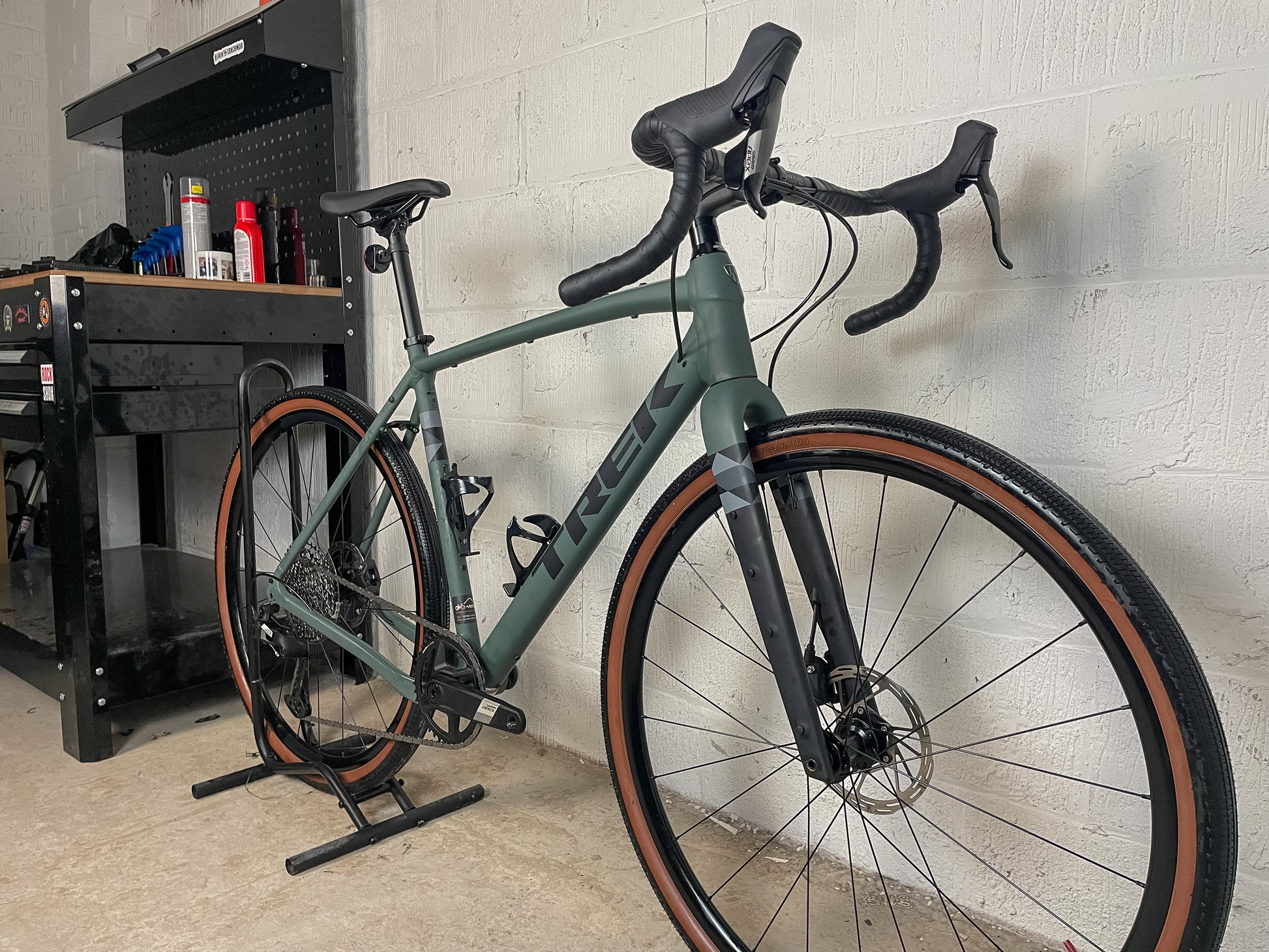

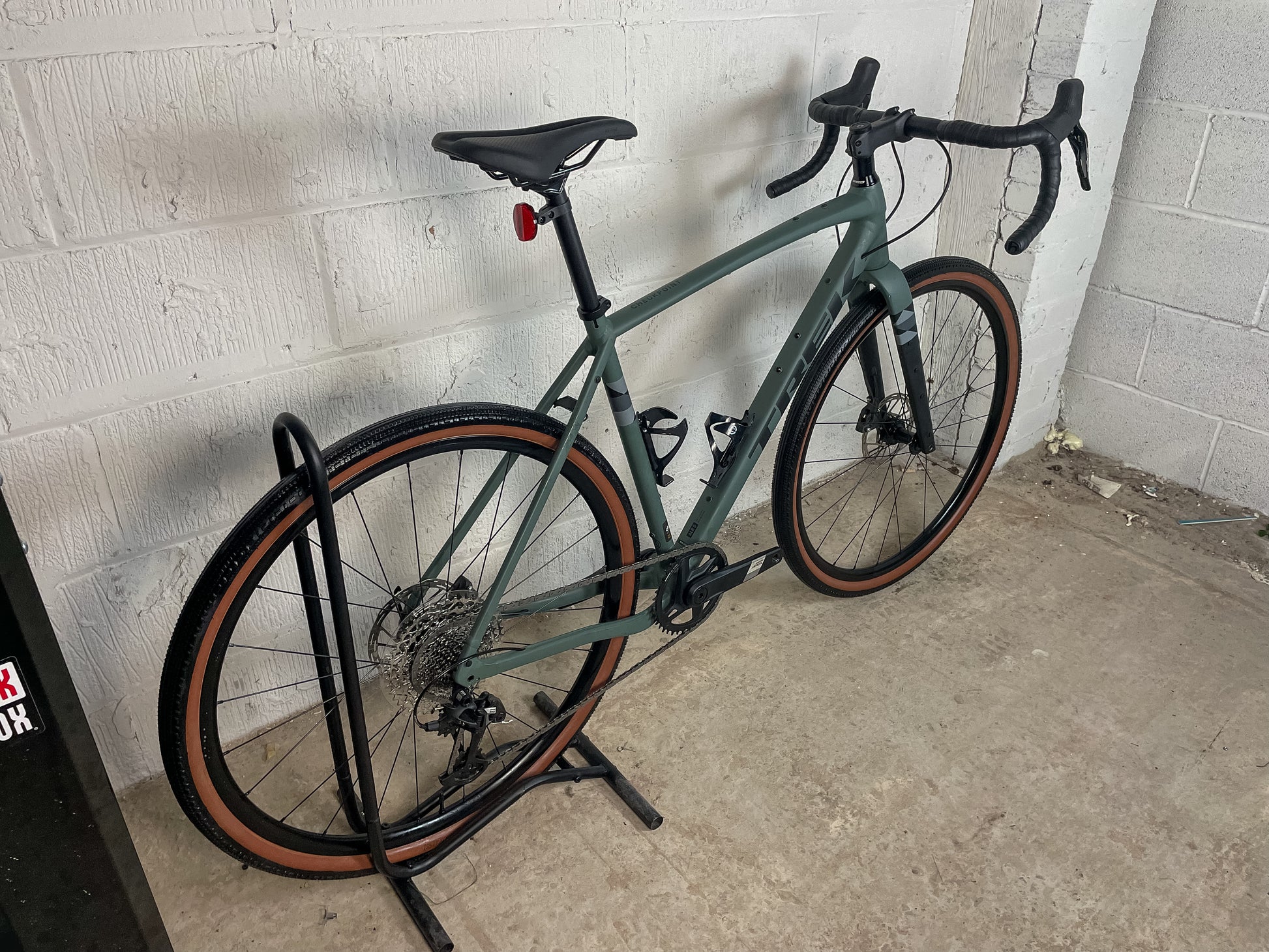

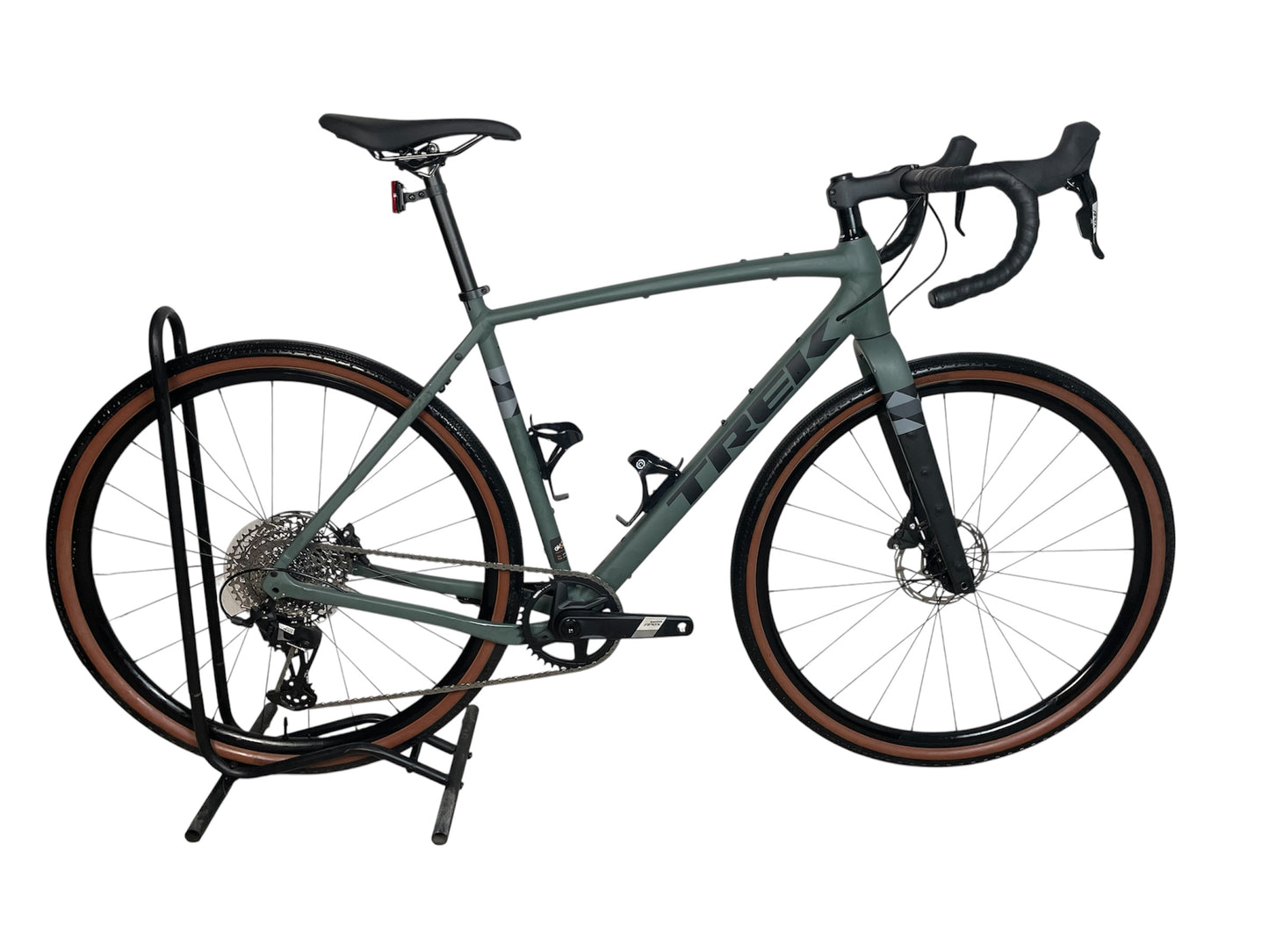

TREK CHECKPOINT ALR 5 2025 GRAVEL ROAD BIKE *Brand New*

Size 56cm. 1 Year warranty involved. Alpha aluminium Frame. Checkpoint Carbon forks on the front. SRAM Apex XPLR derailleur, Bontrager GR1 Team Issue tyres and SRAM XPLR PG-1231 cassette to make pedaling a breeze with a beautiful “Matte Keswick” Colour way to finish it off.

Our price £999

Retail price £2,350

Saving yourself £1,350!

(Won’t Find One Cheaper)

Any questions don’t hesitate to contact us. If bought and wanting delivery. The bike will be delivered on a 48 hour delivery service via parcelforce, so you will receive the bike within 2 days of postage. Short on money? We also have Buy Now Pay Later options with Klarna and PayPal!

Still Wanting A Little More Reassurance?

Not to worry, check our 400+ EBay reviews and also our Trustpilot with over 90+ 5 Star Reviews. We accept all types of payment, ranging from PayPal to credit cards to finance.

Specification below

Frameset

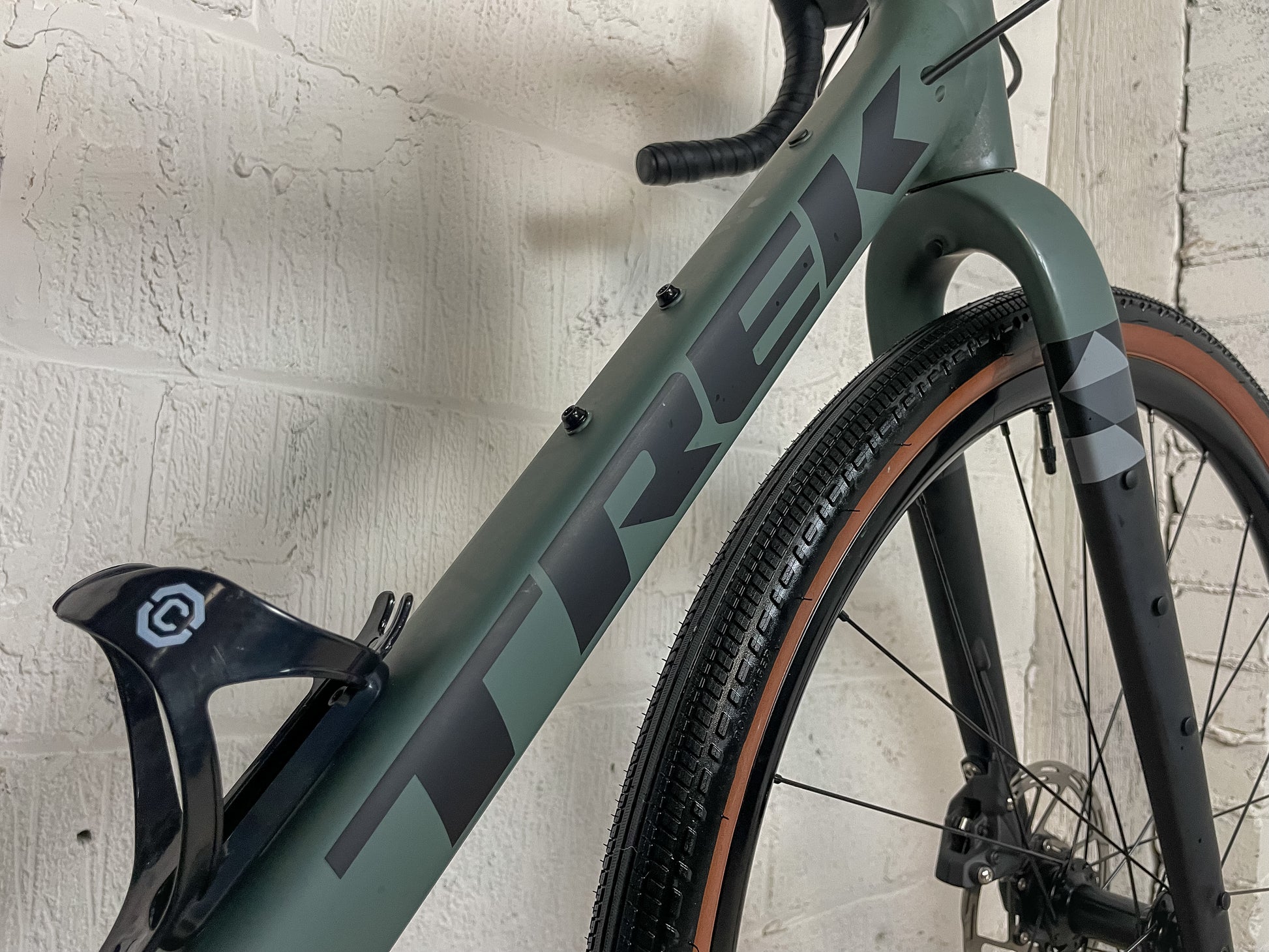

• Frame: with Fork 300 Series Alpha Aluminum, tapered head tube, Internal cable routing, 3S chain keeper, T47 BB, rack and fender mounts, integrated frame bag mounts, flat mount disc, 142x12mm thru axle

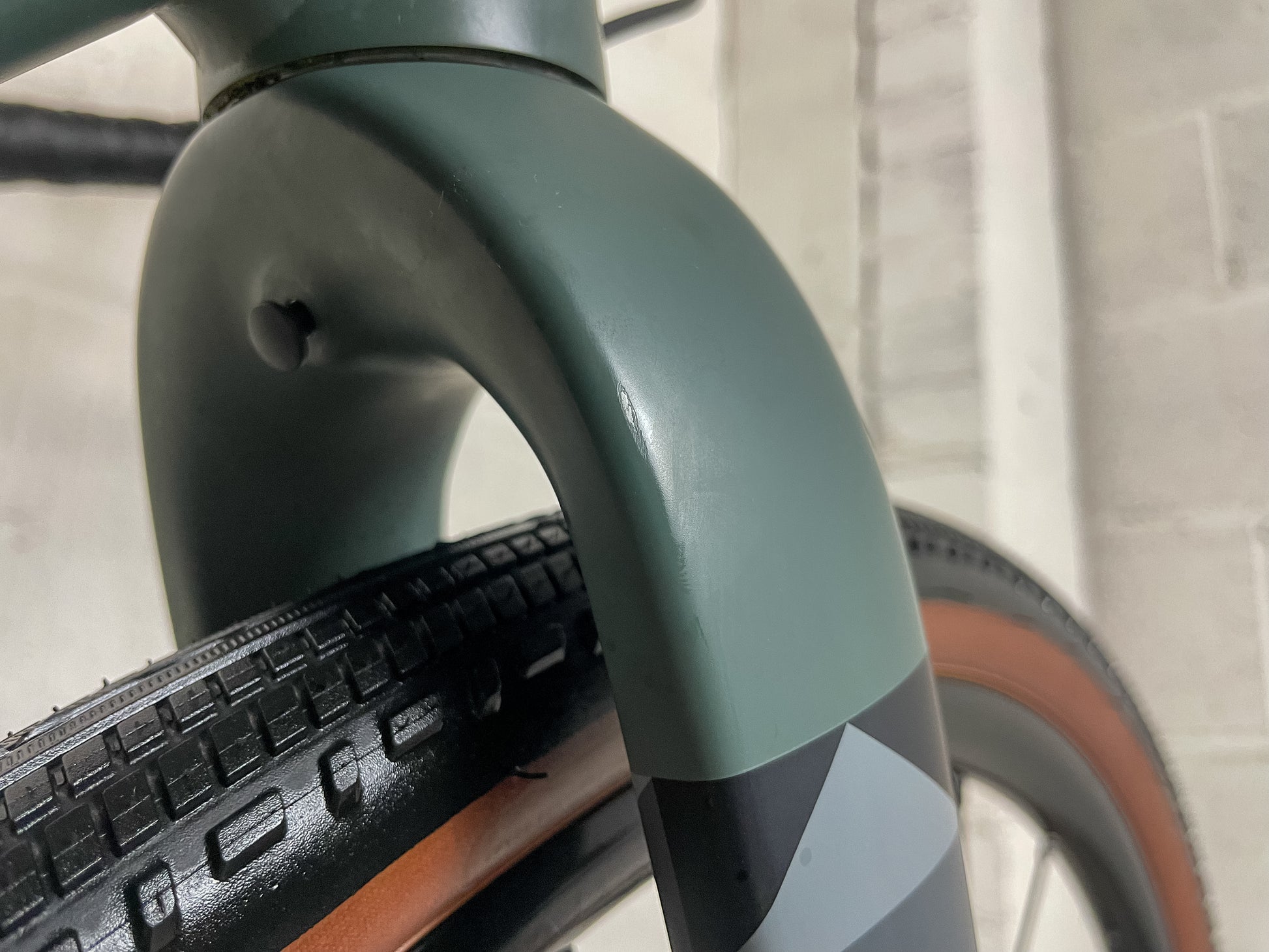

• Fork: Checkpoint carbon, tapered carbon steerer, rack mounts, mudguard mounts, flat-mount disc, 12x100 mm thru axle

Weight

• Weight: 56 - 9.71 kg / 21.41 lbs (with TLR sealant, no tubes)
• Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
• Drivetrain
• Shifter: SRAM Apex, 12-speed

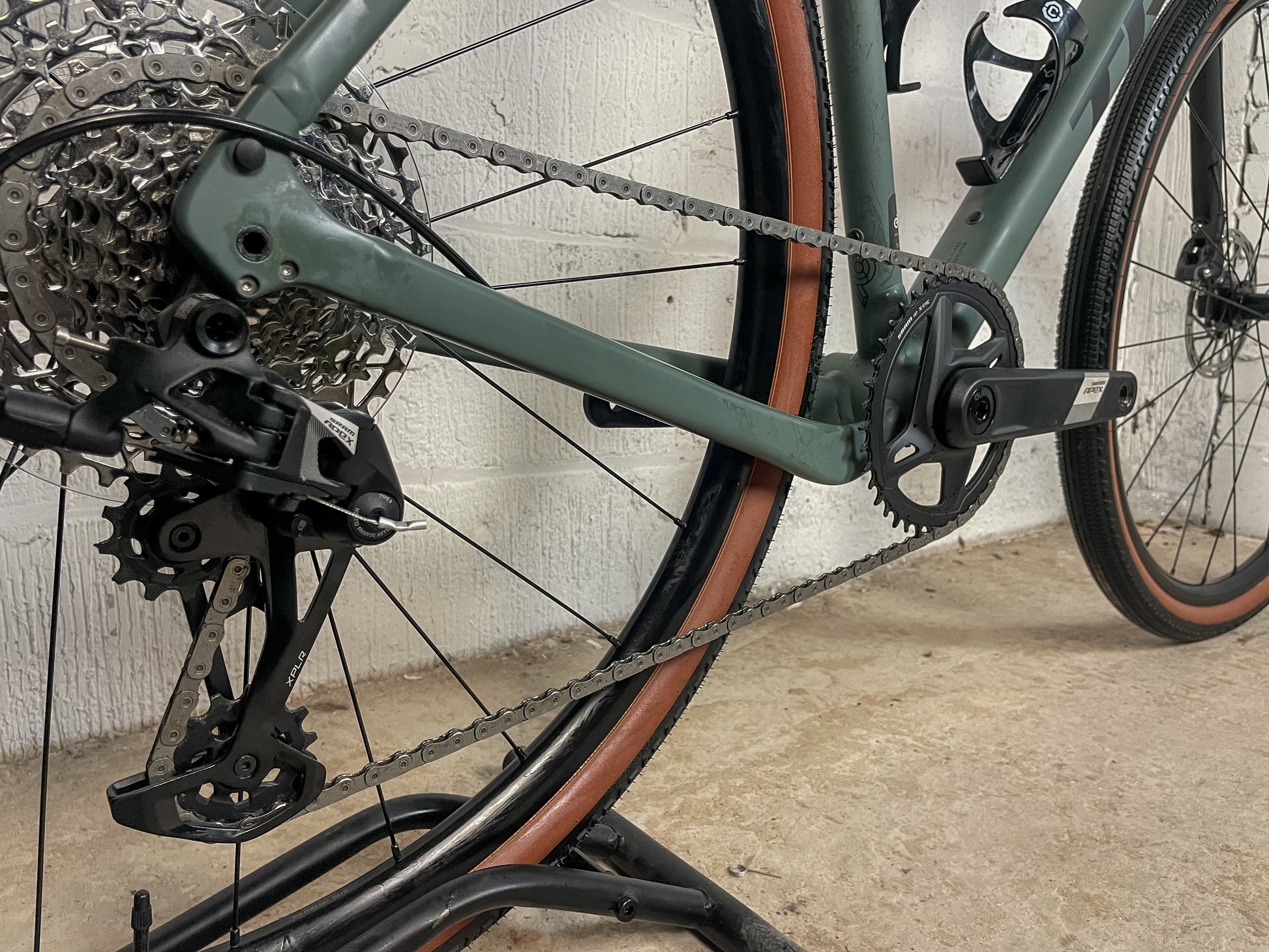

• Rear derailleur: SRAM Apex XPLR, 44T max cog
• *Crank Size: 49
• SRAM Apex 1, 40T, DUB Wide, 165 mm length
• Size: 52
• SRAM Apex 1, 40T, DUB Wide, 170 mm length
• Size: 54, 56
• SRAM Apex 1, 40T, DUB Wide, 172.5 mm length
• Size: 58, 61
• SRAM Apex 1, 40T, DUB Wide, 175 mm length
• Bottom bracket SRAM DUB, T47 threaded, internal bearing
• Cassette: SRAM XPLR PG-1231, 11-44, 12-speed
• Chain: SRAM Apex, 12-speed
• Max. chainring size 1x: 44T (SRAM), 50T (Shimano), 2x: 50/34

Wheels

• Hub front: Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
• Skewer front: Bontrager Switch thru axle, removable lever
• Hub rear: Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
• Skewer rear: Bontrager Switch thru-axle, removable lever
• Rim: Bontrager Paradigm, Tubeless Ready, 24-hole, 21 mm width, Presta valve

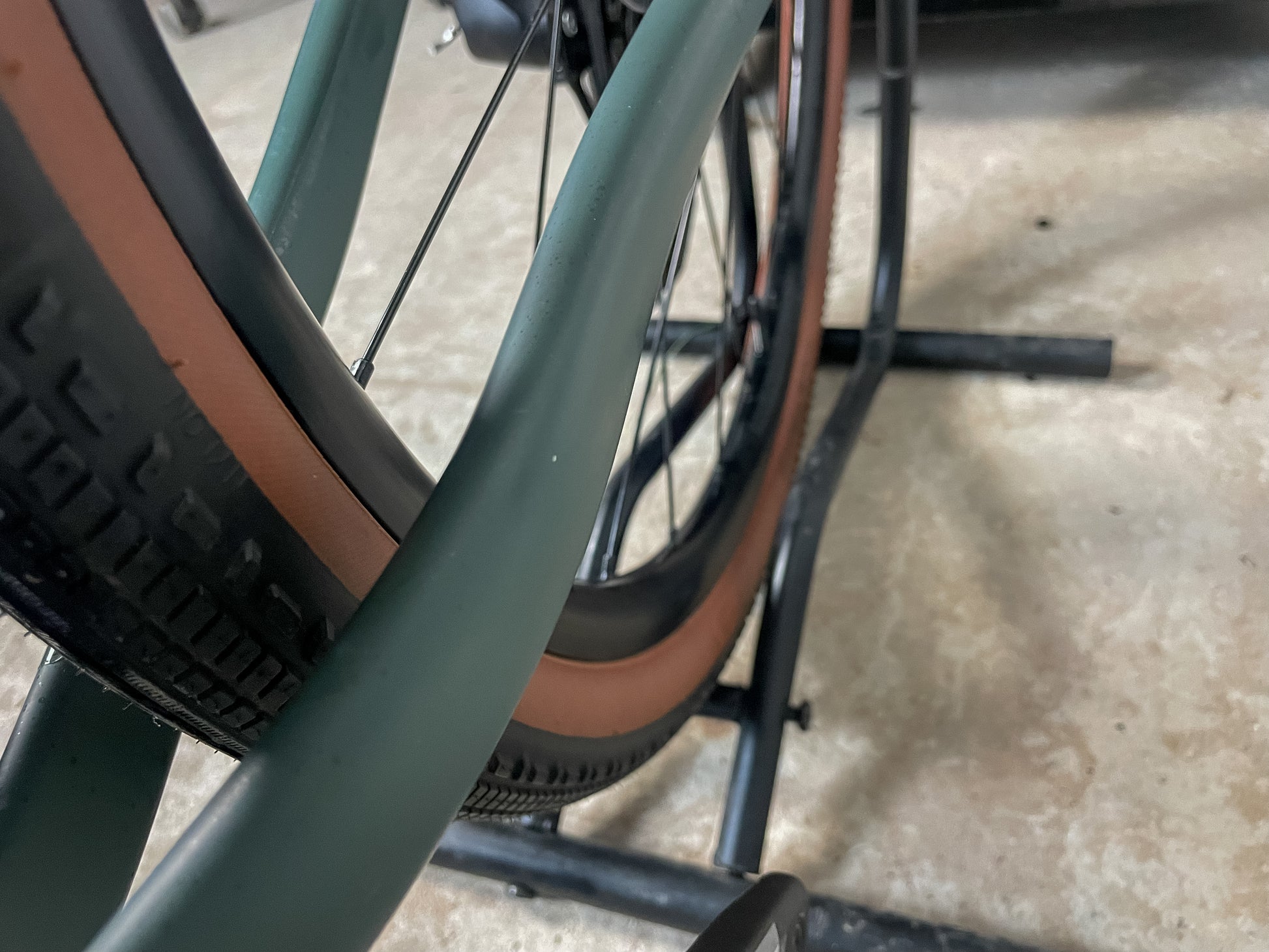

• Tyre: Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40 mm
• Tyre part: Bontrager TLR sealant, 180 ml/6 oz
• Rim strip: Bontrager TLR
• Max tyre size: See service manual

Components

• *Saddle Size: 49, 52
• Bontrager Verse Comp, steel rails, 155 mm width
• Size: 54, 56, 58, 61
• Bontrager Verse Comp, steel rails, 145 mm width
• Seatpost: Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length

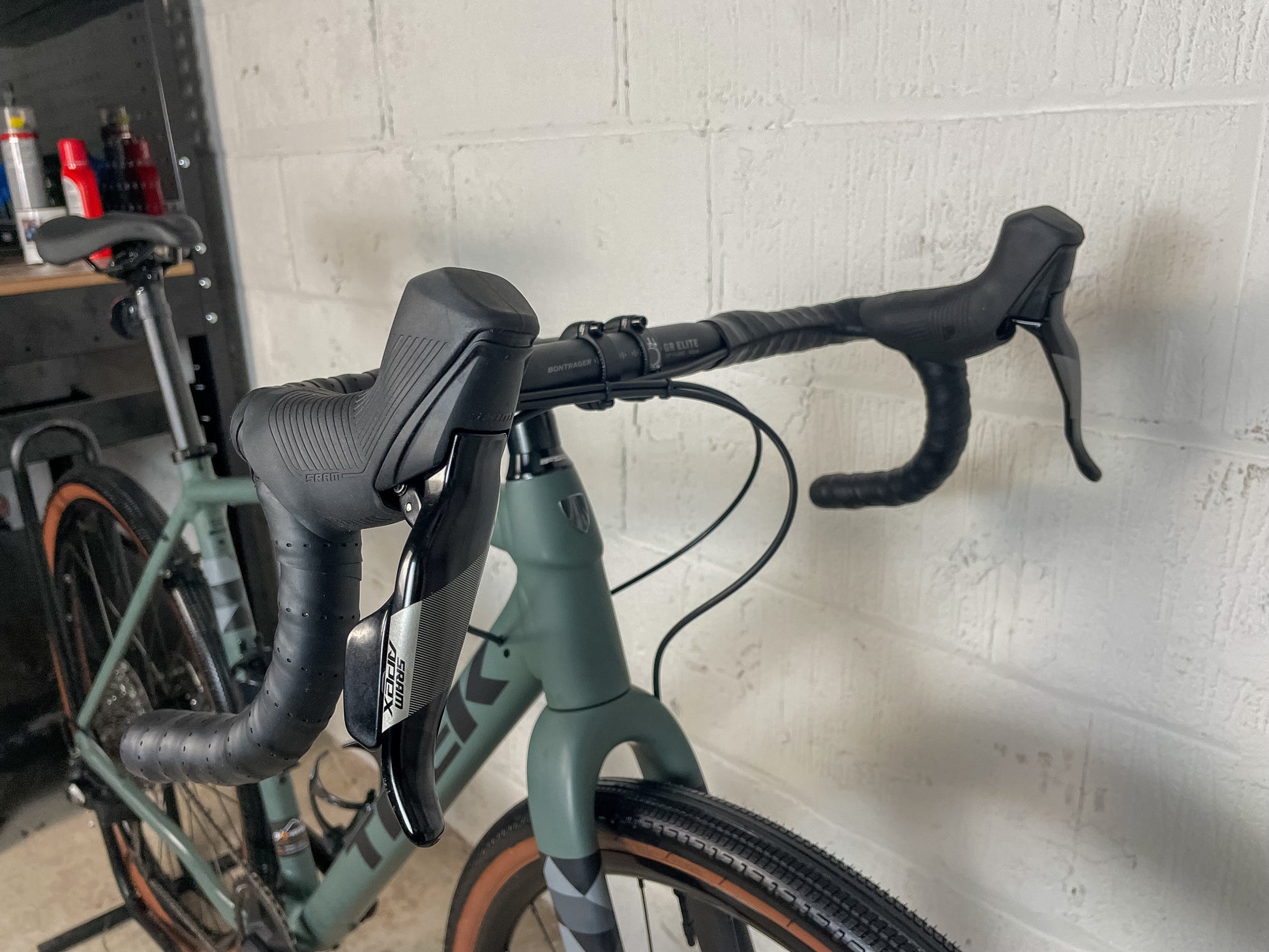

• *Handlebar Size: 49
• Bontrager Elite Gravel, 38 cm width
• Size: 52
• Bontrager Elite Gravel, 40 cm width
• Size: 54, 56
• Bontrager Elite Gravel, 42 cm width
• Size: 58, 61
• Bontrager Elite Gravel, 44 cm width
• Handlebar tape: Bontrager Supertack Perf tape
• *Stem Size: 49
• Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
• Size: 52, 54
• Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
• Size: 56, 58
• Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
• Size: 61
• Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
• Brake: SRAM Apex hydraulic disc, flat mount
• Brake rotor: SRAM Paceline, rounded, CentreLock, 160 mm
• Brake lever: SRAM Apex, 12-speed
• Rotor size: Max brake rotor sizes: 160 mm front and rear
