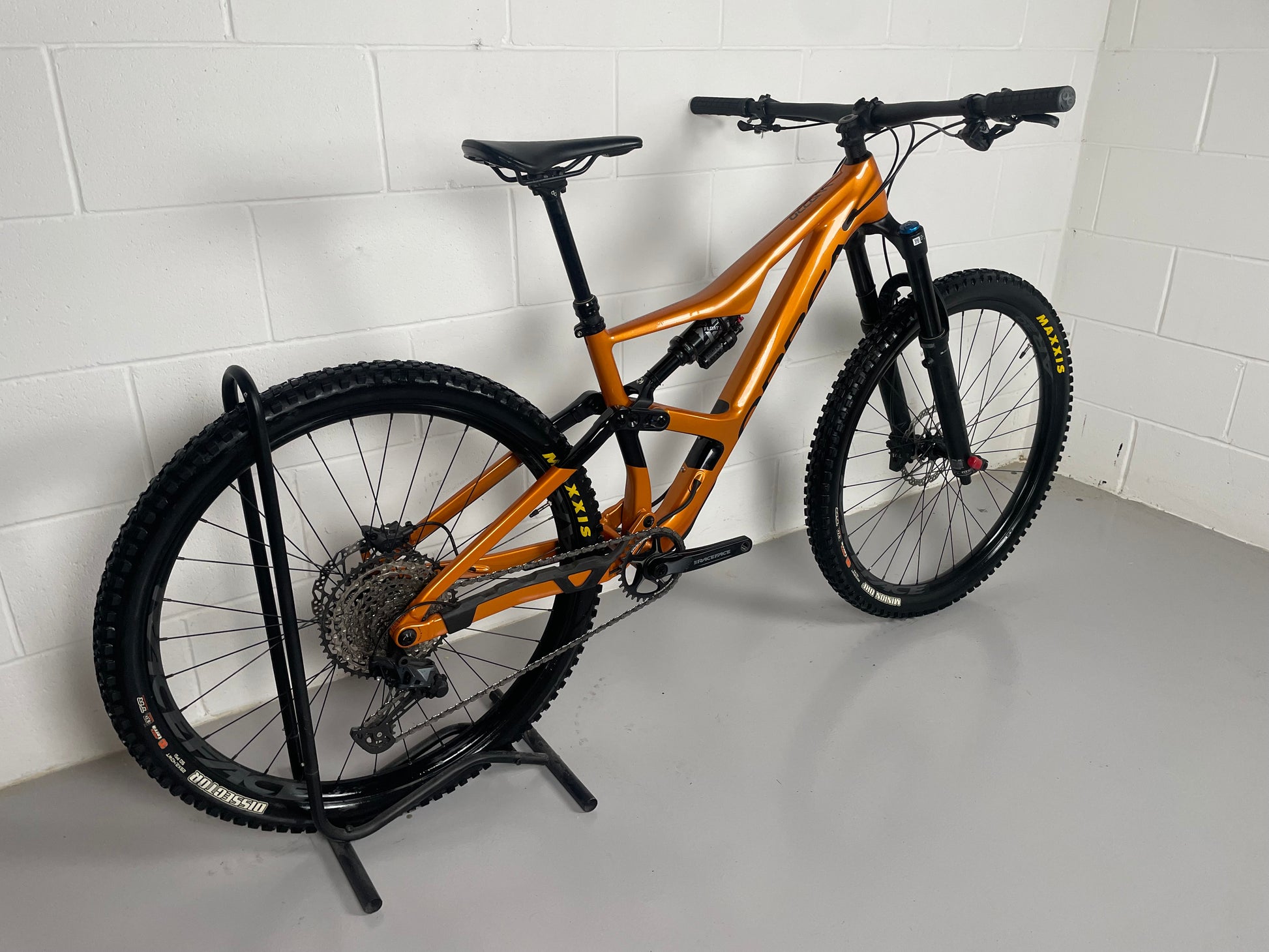

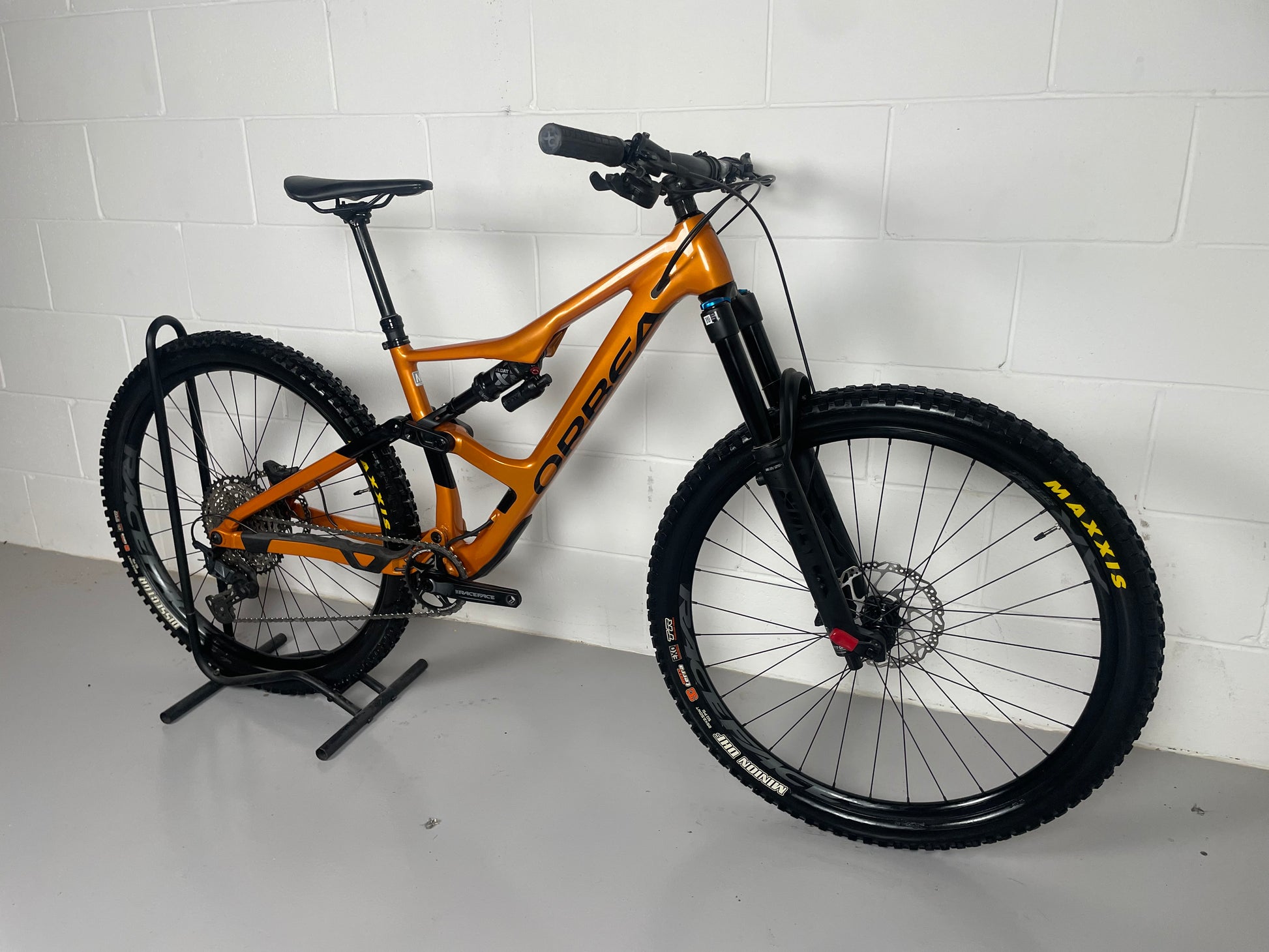

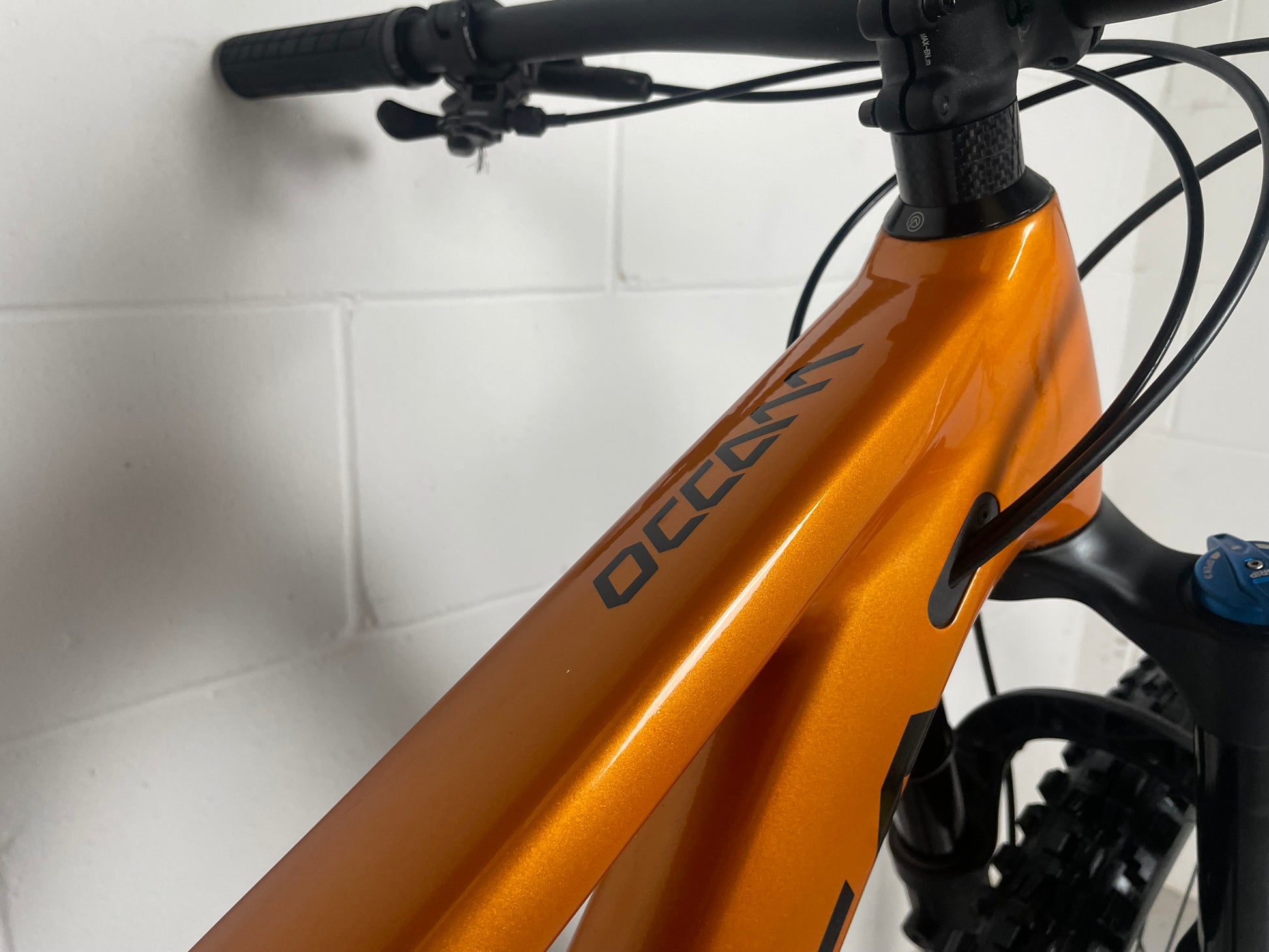

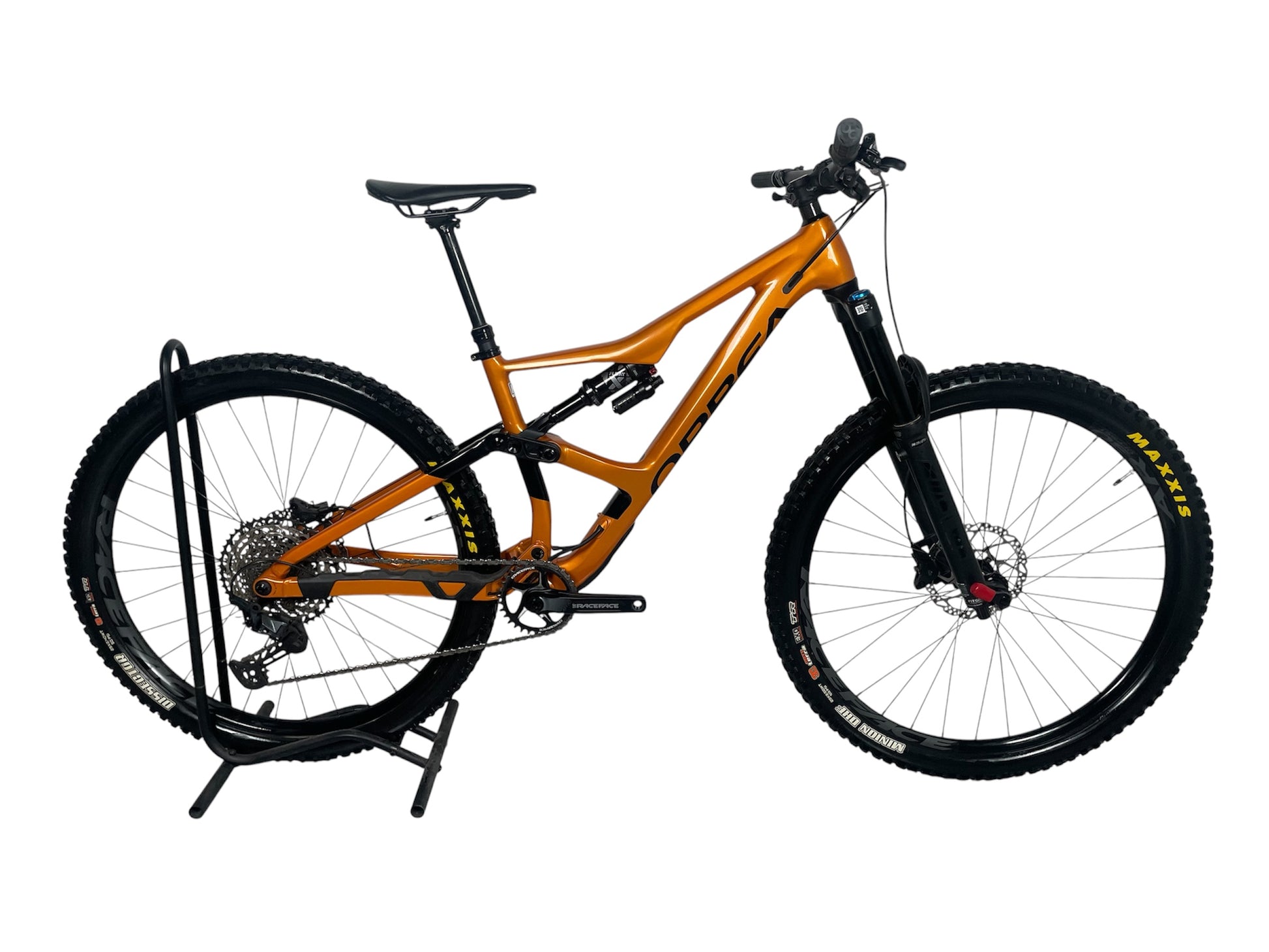

Orbea Occam H20 LT 2023 Mountain Bike
Tax included. Shipping calculated at checkout.
- Warranty Included
- Free Delivery
- Eco Friendly
Verfügbarkeit für Abholungen konnte nicht geladen werden
Find Your Perfect Fit.
Sizes vary by brand. When in doubt, size up.
| Size | Height | Frame |
|---|---|---|
| XS | 4'9" – 5'1" | XS / 14" |
| S | 5'1" – 5'6" | S / 16" |
| M Most Popular | 5'6" – 5'10" | M / 18" |
| L | 5'10" – 6'1" | L / 20" |
| XL | 6'1" and above | XL / 22" |
| Size | Height | Frame |
|---|---|---|
| XS | 4'9" – 5'1" | 46 cm |
| S | 5'1" – 5'6" | 50 cm |
| M Most Popular | 5'6" – 5'10" | 54 cm |
| L | 5'10" – 6'1" | 58 cm |
| XL | 6'1" and above | 62 cm |
| Wheel Size | Age (approx) | Height |
|---|---|---|
| 12" | 2 – 4 yrs | 2'8" – 3'3" |
| 14" | 3 – 5 yrs | 3'3" – 3'6" |
| 16" | 4 – 6 yrs | 3'5" – 4'0" |
| 20" Most Popular | 5 – 8 yrs | 3'11" – 4'3" |
| 24" | 7 – 11 yrs | 4'2" – 4'8" |
Not sure? Our team can help you find the right fit — just get in touch.
Ask the team →Why this bike?
Size Medium. 1 Year warranty involved. FOX FLOAT 36 Performance Forks on the front suspension With 150mm of travel and FOX FLOAT X Performance Shock on the rear offering a very comfortable ride with the ability to handle anything that’s thrown at it. Shimano SLX M7100 rear derailleur to make peddling a breeze with a beautiful “Gloss Orange” Colour way to finish it off.
Our price £1,249
Retail price £3,999
Saving yourself £2,750
Any questions? Don’t hesitate to contact the store. Our team is always happy to help.
We accept all major payment methods including PayPal, credit/debit cards and finance options.
All Cycle To Work schemes are accepted at MCR BIKES.
Short on money? Buy Now, Pay Later options are available via Klarna, ClearPay and PayPal.
Every bike is fully checked by our in-store mechanics allowing us to confidently give 1 year warranty on your bike. Fast, professionally packed and fully tracked delivery via Royal Mail.
Trusted by thousands of riders. Check out our 200+ 5-star Trustpilot reviews and our 400+ 5-star eBay reviews.
Become a part of the MCR BIKES community today and find out why we are the fastest growing bike shop in the UK.
Specification Below
|
Wheel Size |
29" |
|
Frame Material |
Aluminum |
|
Frame Material Details |
Hydroformed high-polished triple-butted alloy; molded chainstay and down tube protection |
|
Rear Travel |
150mm |
|

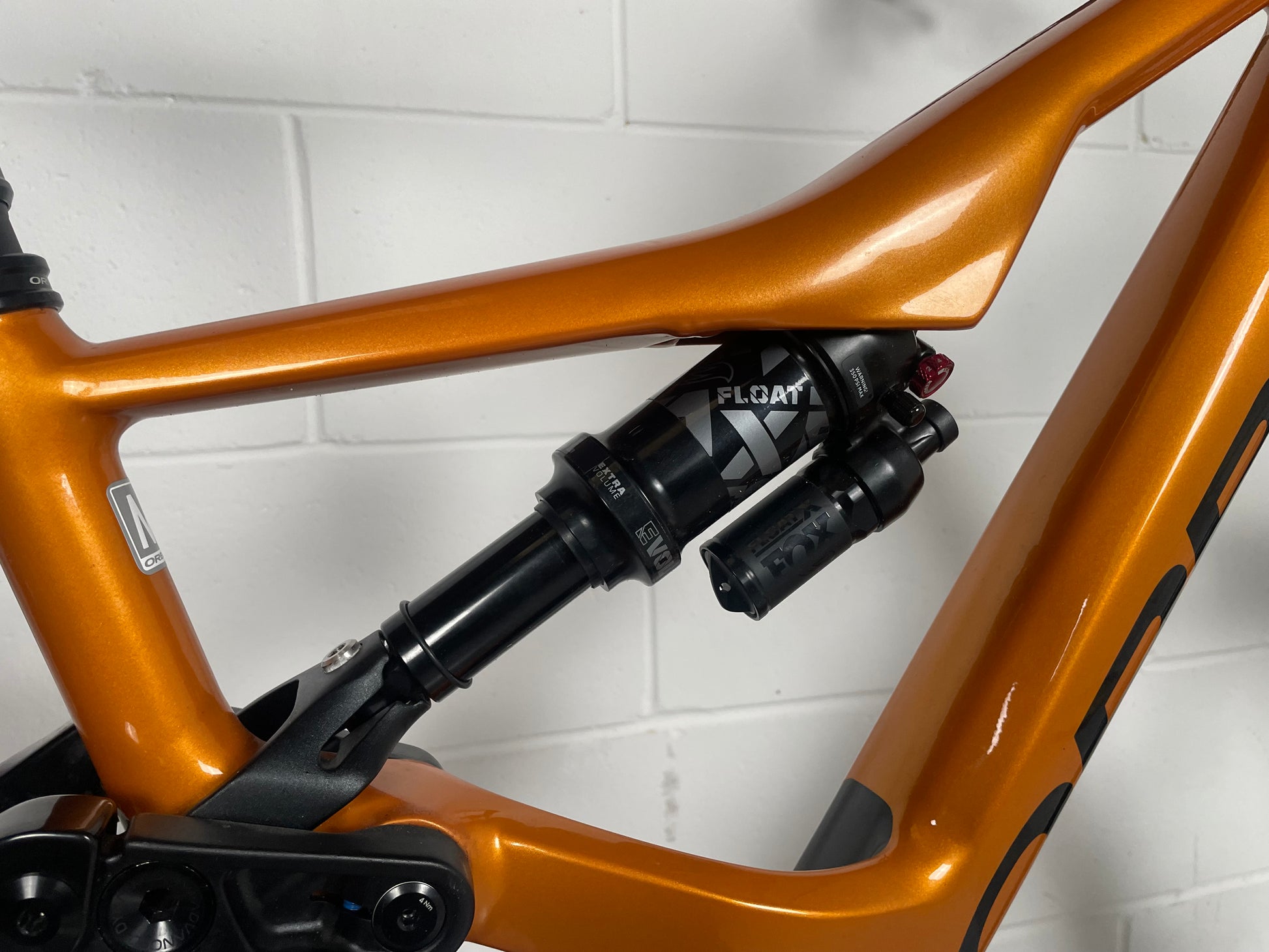

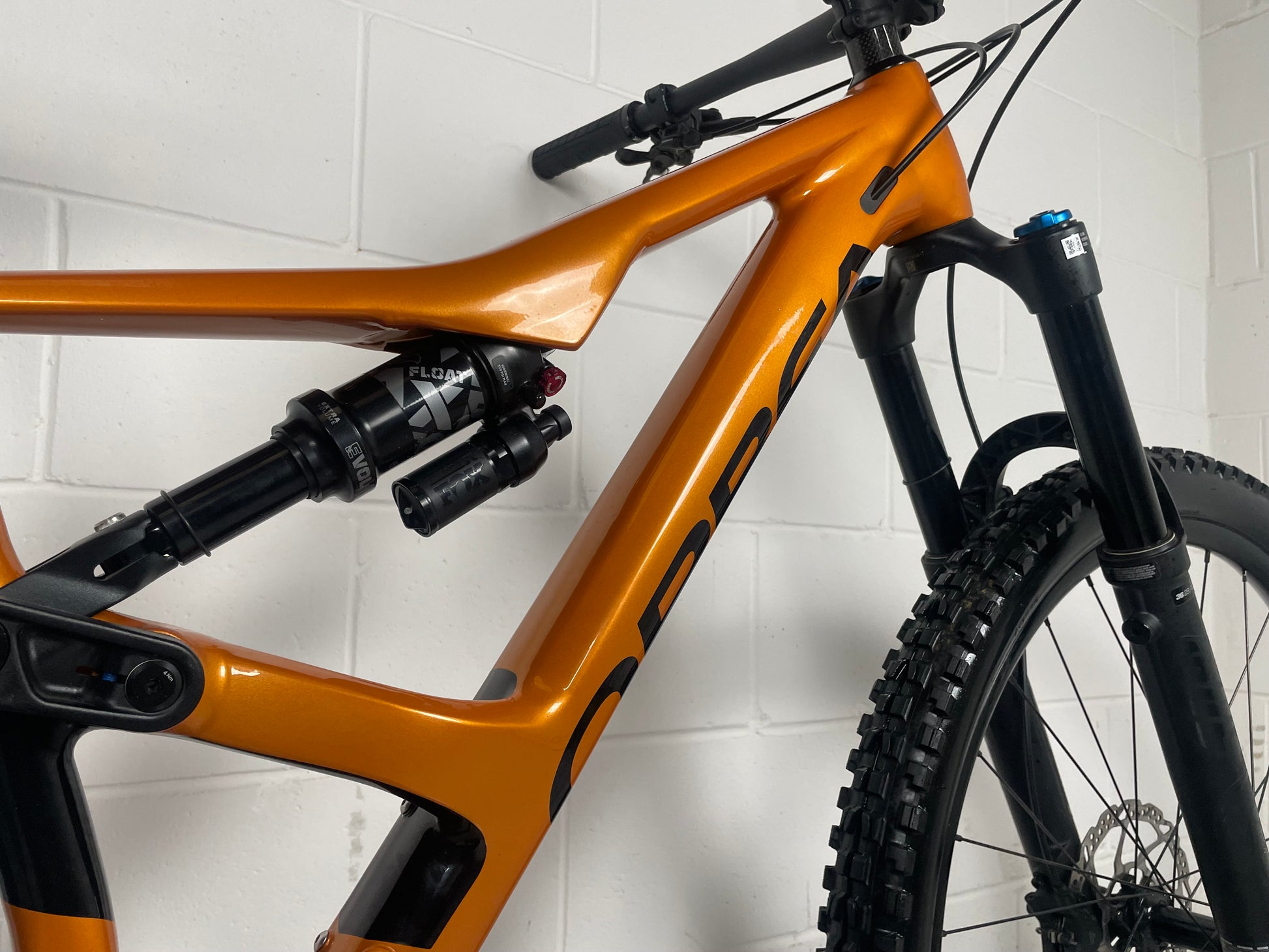

Rear Shock |
FOX FLOAT X Performance, EVOL LV, 2-position compression lever, custom tune, 210mm length x 55mm stroke Options: FOX FLOAT X Factory, FOX DHX Factory |
|
Fork |
FOX FLOAT 36 Performance, GRIP damper, 3-position compression lever, 44mm offset Option: FOX FLOAT 36 Factory, GRIP2 damper |
|
Fork Travel |
150mm |
|
Head Tube Diameter |
Tapered, 1.125" top, 1.5" bottom |
|
Headset |
ACROS, alloy, integrated |
|

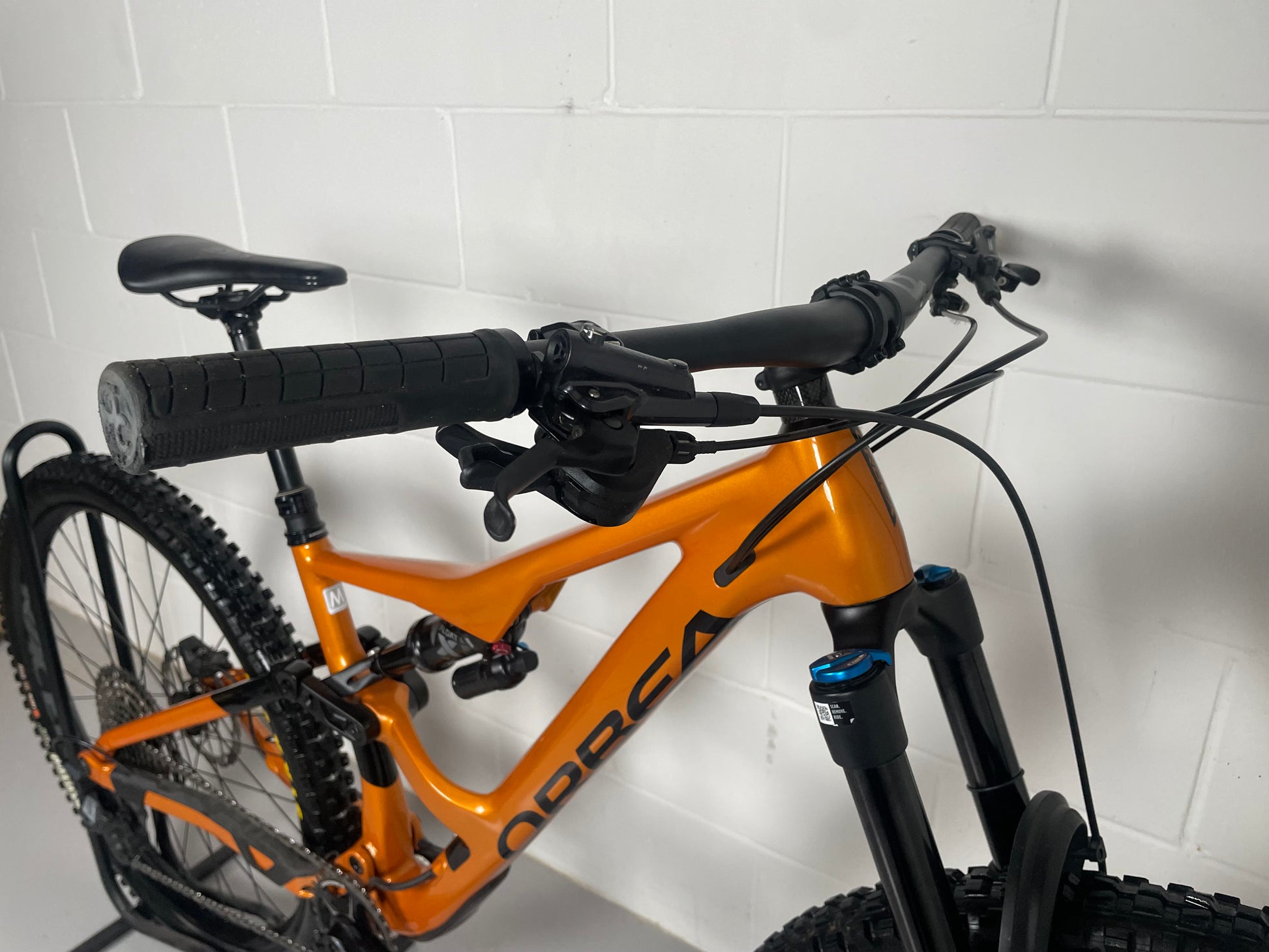

Handlebar |
OC Mountain Control MC30, 800mm width, 20mm rise, 35mm clamp diameter |
|
Stem |
3D-forged alloy, 7° drop, 35mm bar clamp Length: 45mm (SM/MD), 55mm (LG/XL) |
|
Grips |
|
|
Brakes |
Shimano Deore M6100, 2-piston Option: Shimano Deore XT M8120, 4-piston |
|
Brake Levers |
Shimano Deore M6100 Option: Shimano Deore XT M8100 |
|
Drivetrain |
1x |
|
Shifters |
Shimano SLX M7100, 12-speed, I-SPEC EV mounting bracket |
|
Front Derailleur |
None |
|

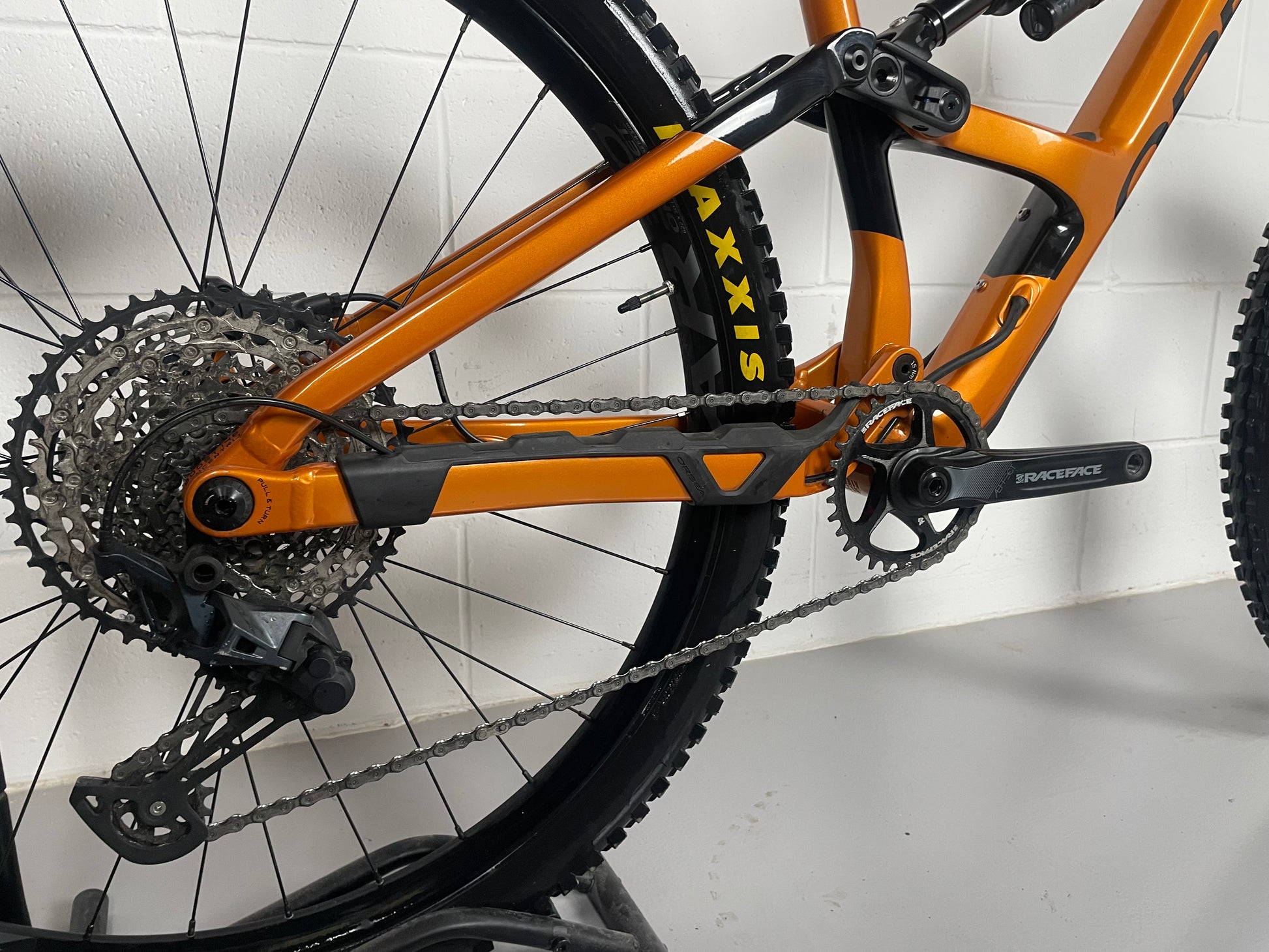

Rear Derailleur |
Shimano SLX M7100, 12-speed, SGS cage, SHADOW RD+ |
|
ISCG Tabs |
None |
|
Chainguide |
None |
|
Cranks |
Race Face Aeffect Length: 170mm (SM/MD), 175mm (LG/XL) |
|
Chainrings |
Race Face Aeffect, 32 tooth |
|
Bottom Bracket |
|
|
Pedals |
None |
|
Chain |
Shimano Deore M6100, 12-speed |
|
Cassette |
Shimano SLX M7100, 12-speed, 10-51 tooth |
|
Rims |
Race Face AR 30c, tubeless ready Options: OQUO Mountain Control MC32Team Alloy, Race Face Next SL Carbon |
|
Hubs |
Race Face wheelset, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) rear with MICRO SPLINE driver |
|
Spokes |
Race Face wheelset |
|
Tires |
Maxxis Dissector, 3C MaxxTerra compound, EXO casing, TR, 60 TPI, 29" x 2.4" Option: DH-casing Maxxis Assegai/Minion DHR II combo |
|
Saddle |
fi'zi:k Taiga, S-Alloy rails Option: fi'zi:k Taiga, Kium rails |
|
Seatpost |
OC Mountain Control MC20 dropper, Shimano MT500 I-SPEC EV remote lever Drop: 125mm (SM), 150mm (MD/LG), 170mm (XL) |
|
Seatpost Diameter |
31.6mm |
|
Seatpost Clamp |
Single bolt |
|
Rear Dropout / Hub Dimensions |
12mm x 148mm (Boost) |
