An absolutely stunning gravel bike for those who seek a more traditional look and feel. This creation prioritizes lightweight features and adheres to the sacred and long-established characteristics of a drop bar bike. We’ve thoughtfully spec’d gear steps that are closer together to help you maintain your ideal cadence. With that sweet spot so easy to find, you won’t lose your rhythm – no matter your load or speed.

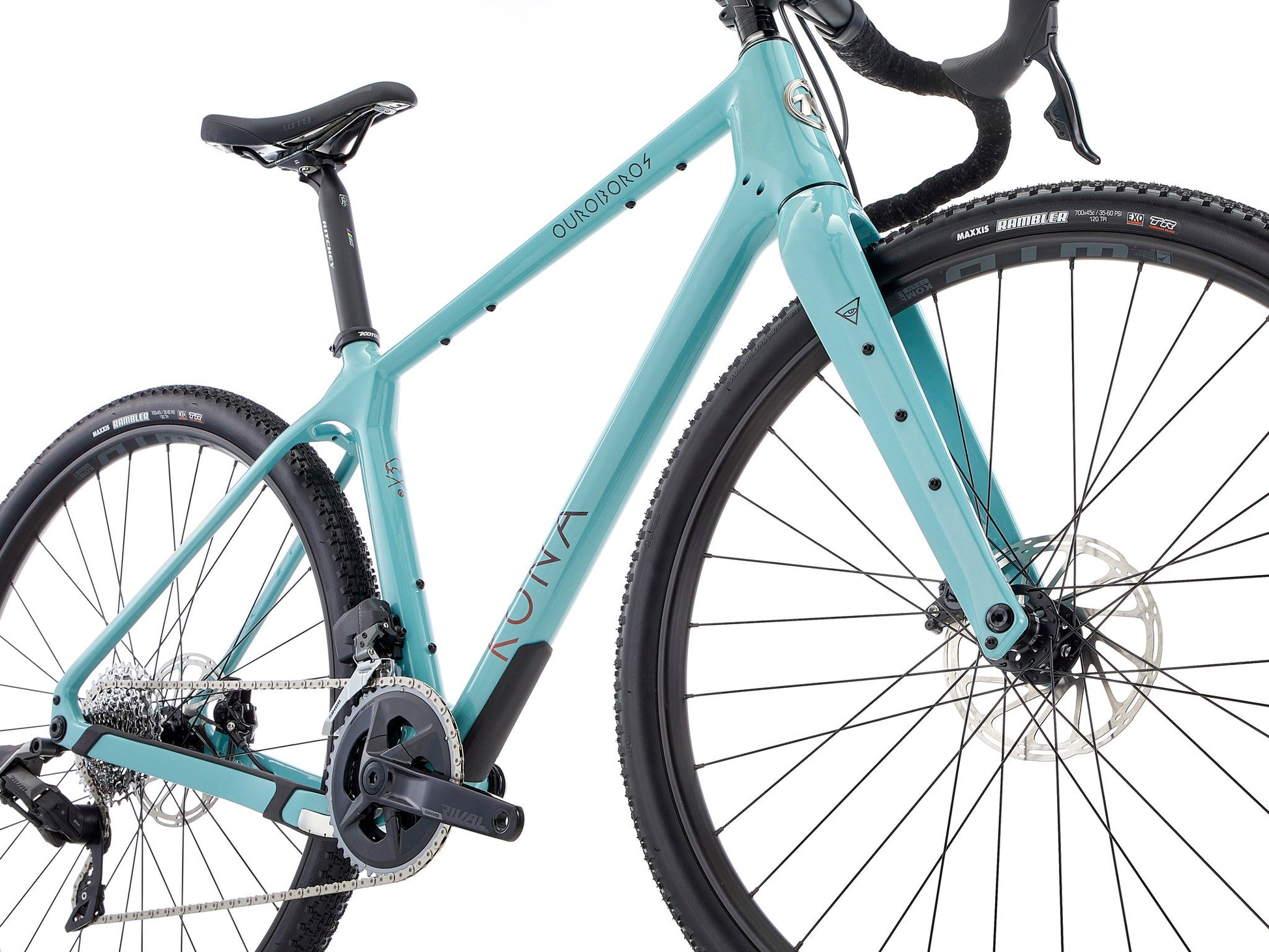

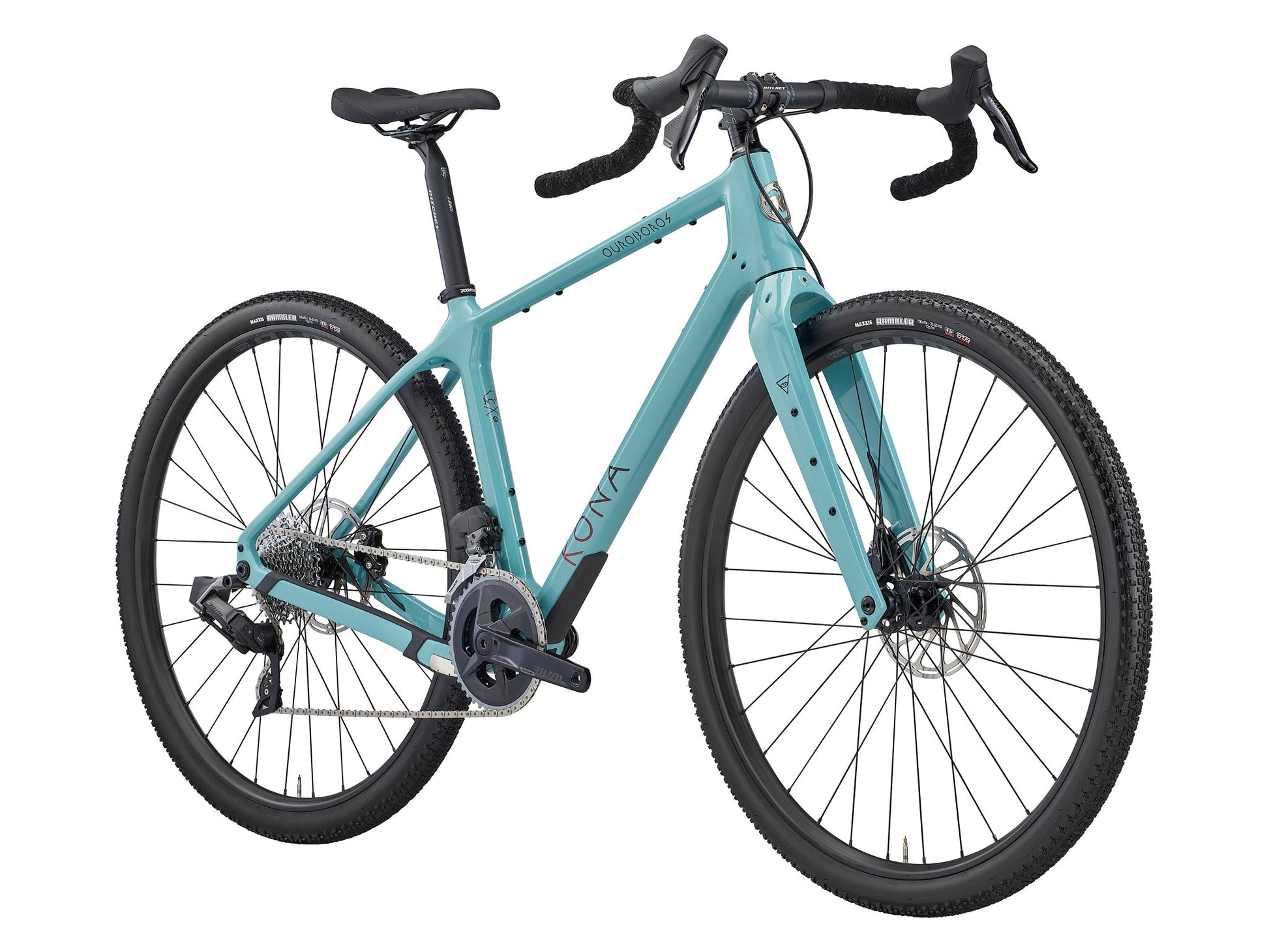

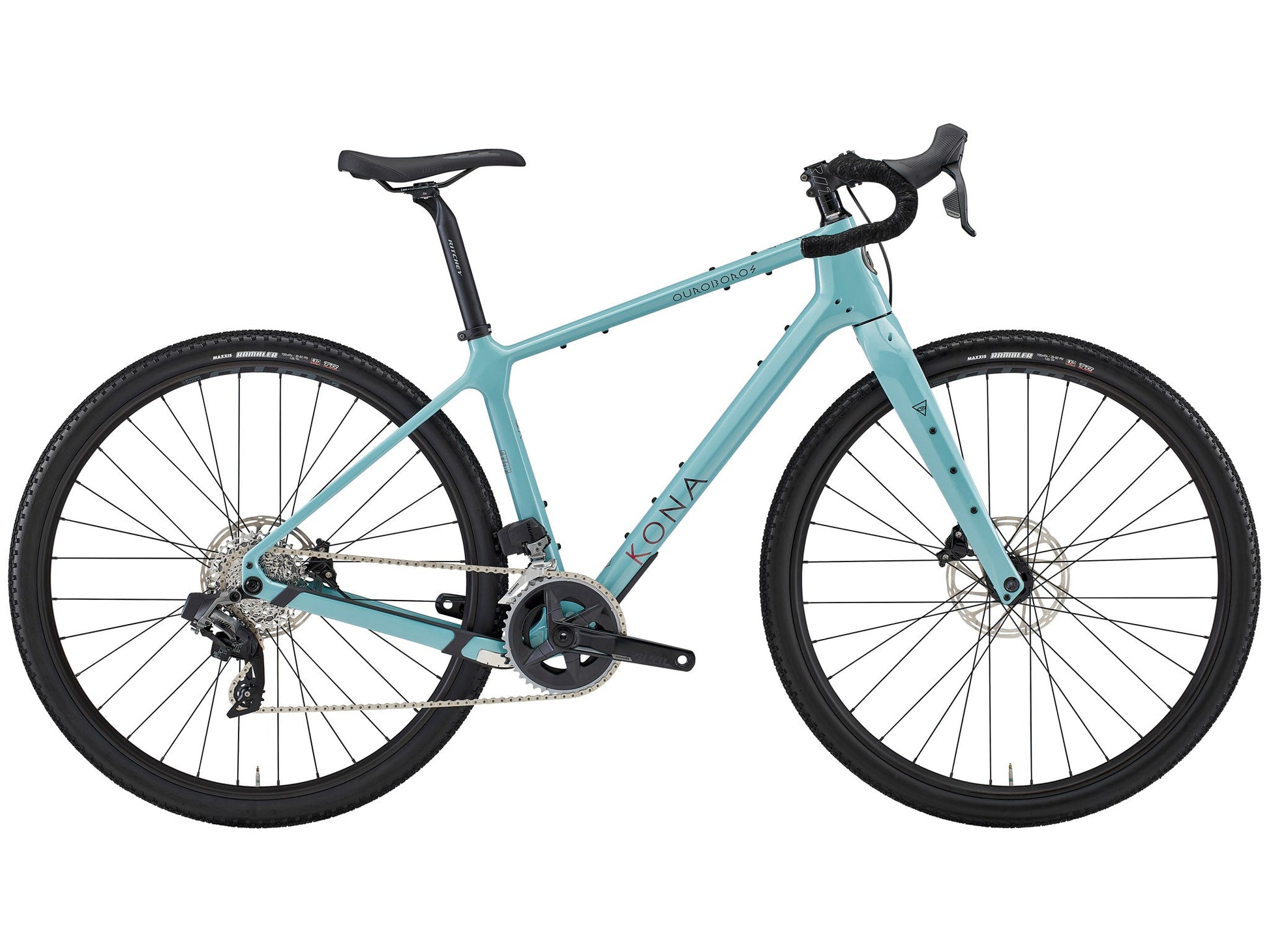

The Kona Ouroboros CR/DL 2024 gravel bike is a blend of tradition and modernity, offering a lightweight design and classic drop bar characteristics. With strategically optimized gear steps, finding and maintaining your ideal cadence is effortless, ensuring a smooth ride no matter the load or speed. Experience the perfect harmony between form and function.

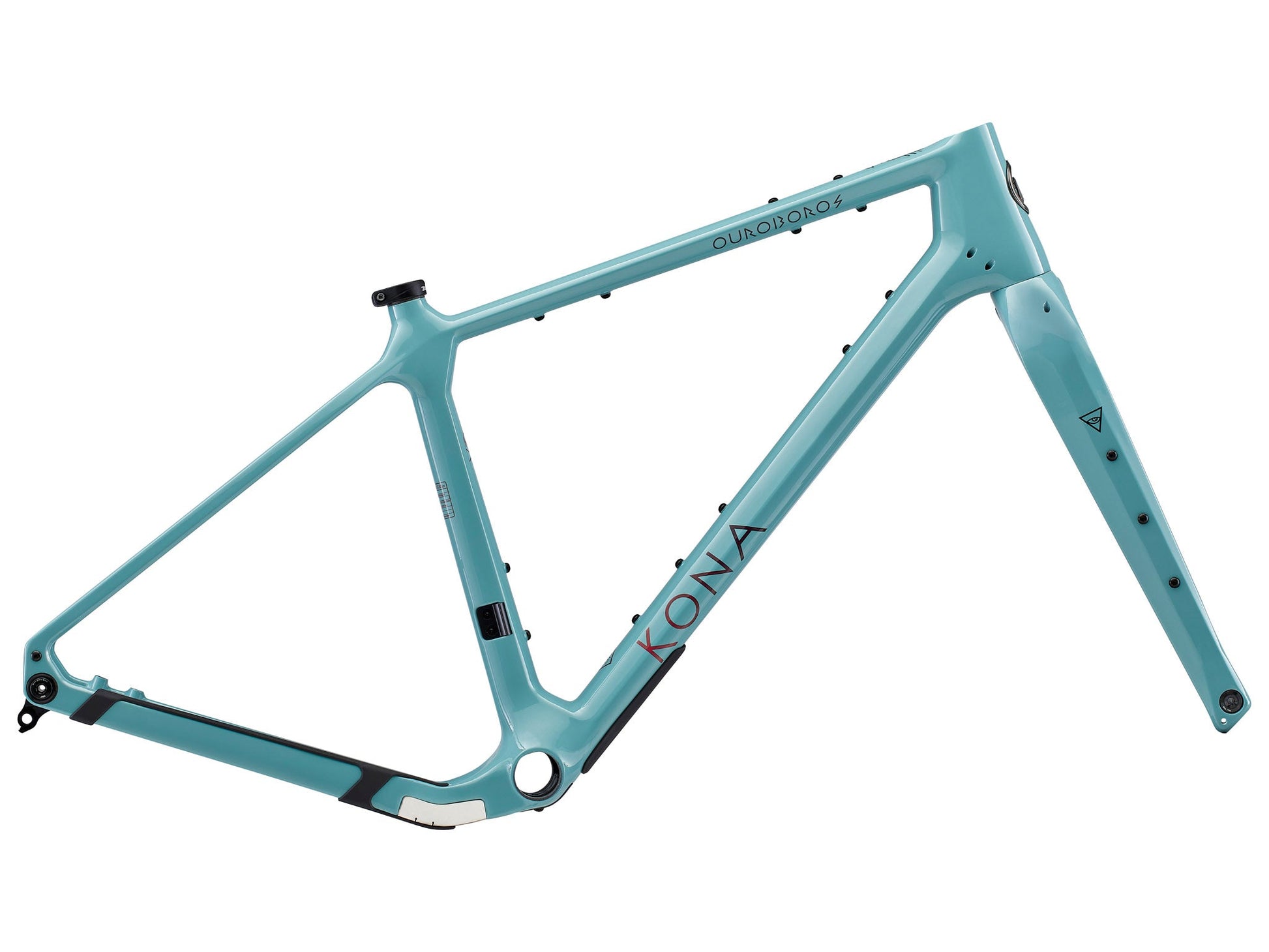

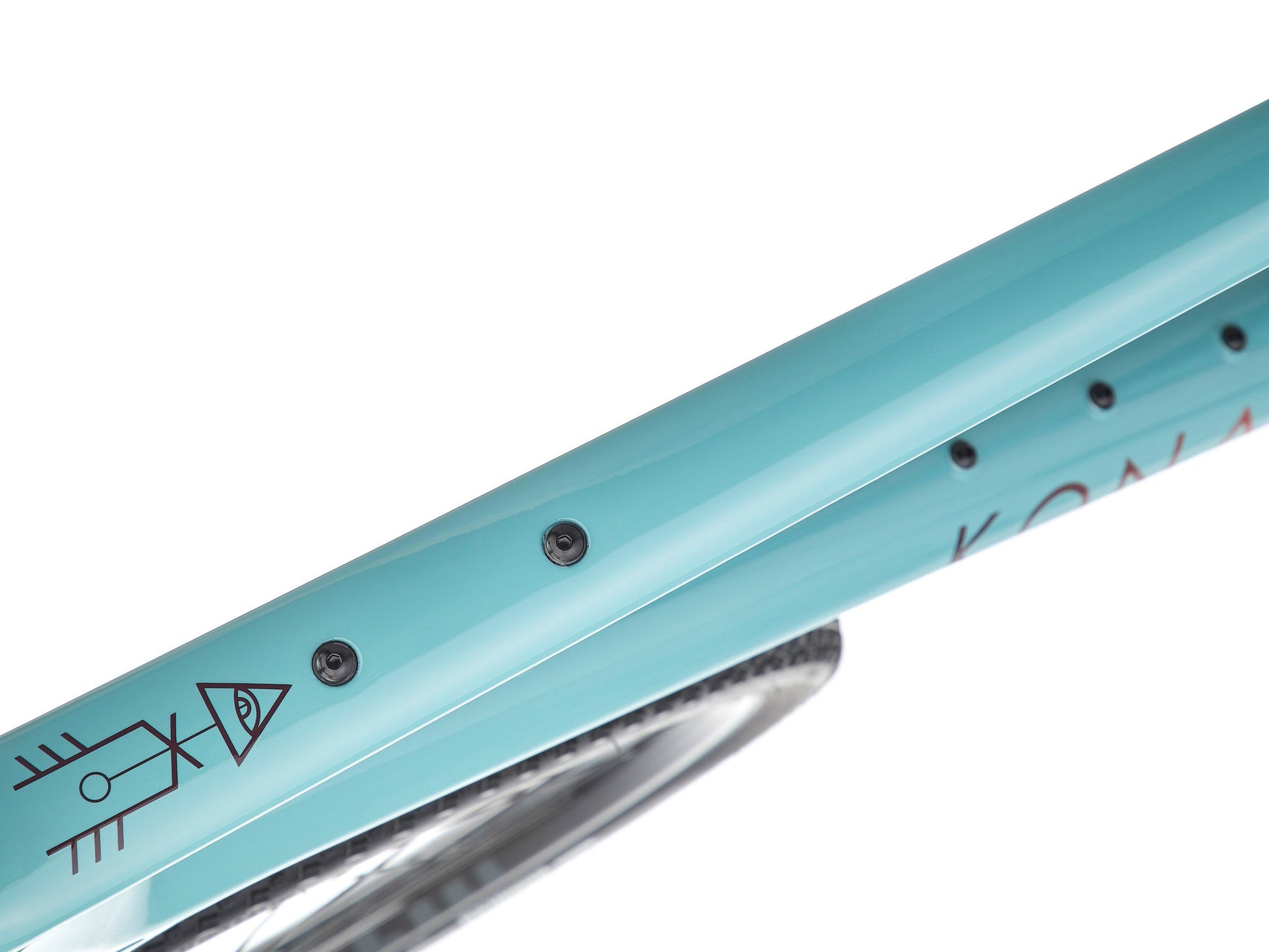

The Ouroboros CR/DL boasts a carbon fork with 3-pack WB bosses, dynamo routing, and a native 160 flat mount, as well as rack/fender mounts. The carbon frame features numerous WB boss mounts for frame bags and bento boxes, making it an ideal choice for bikepacking. Equipped with a Rival 2x Wide AXS groupset, a carbon carry-everything fork, and serviceable hubs, this bike is optimized for long-distance adventures. The SRAM Rival AXS Wide groupset includes a Rival 43/30t DUB Wide crankset and a 10-36t 12s cassette, while Rival hydraulic brakes ensure reliable stopping power. The KT hubs utilize STAR ratchet technology, inspired by DT Swiss, and feature interchangeable ratchets and loop springs. The 6 bolt rotors can be easily tightened with a multi-tool, making them convenient for extended trips.
Sizing
-
48cm : 4'10"-5'1"
-
50cm: 5'0"-5'3"
-
52cm: 5'2"-5'7"
-
54cm: 5'6"-5'10"
-
56cm: 5'9"-6'0"
-
58cm: 6'1"-6'5"
SPECIFCATIONS -
Frame Material - Kona Carbon

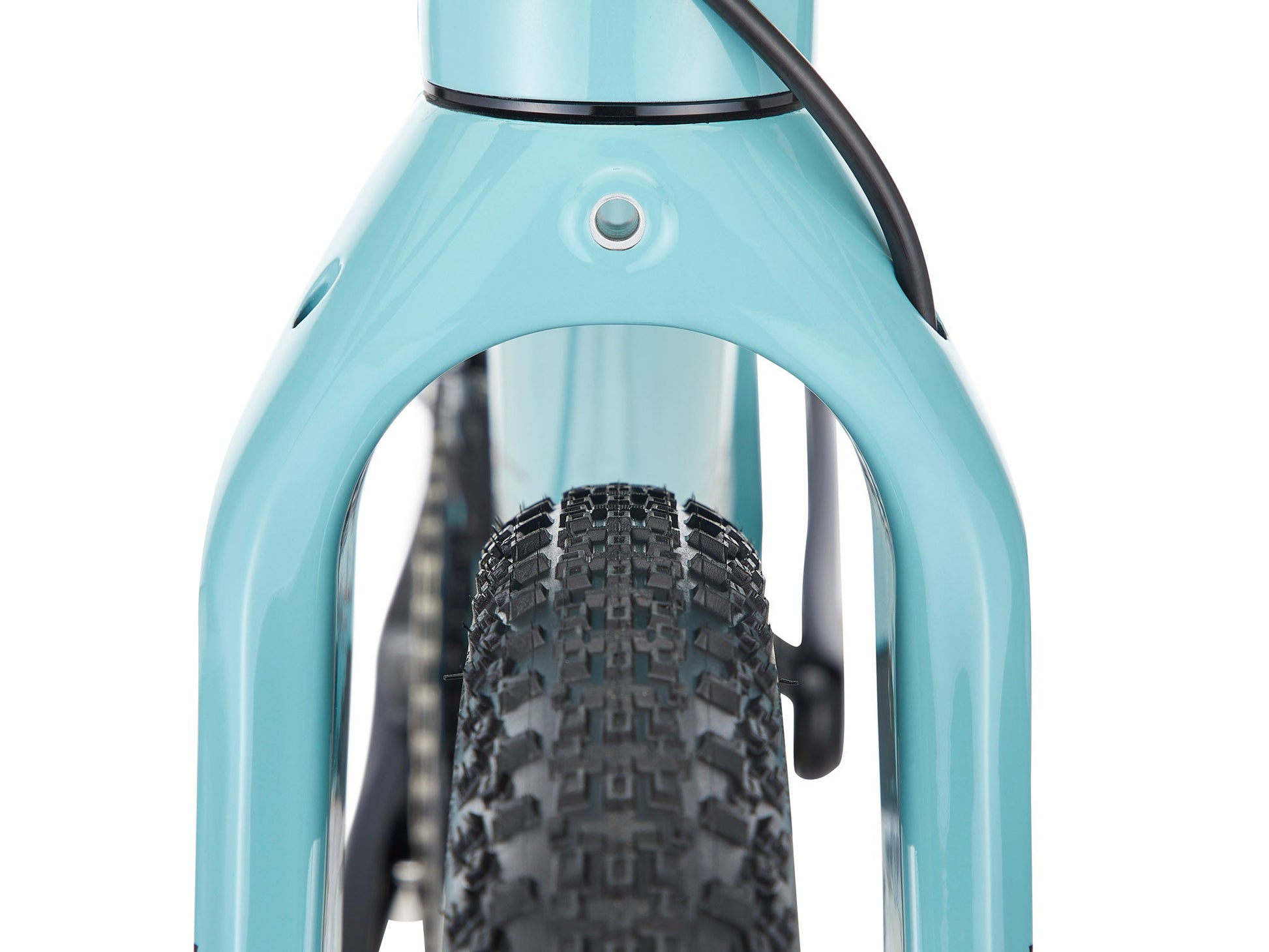

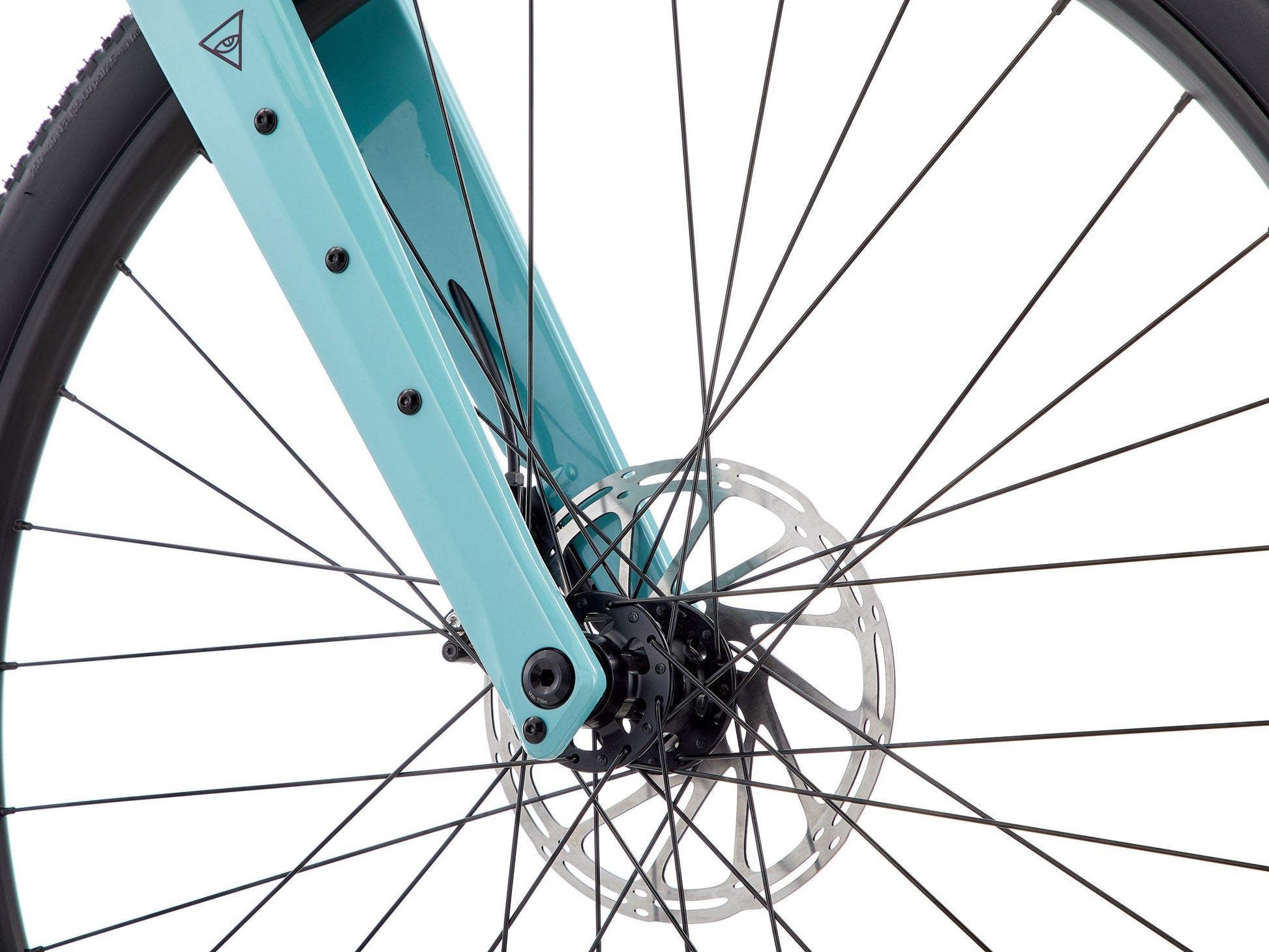

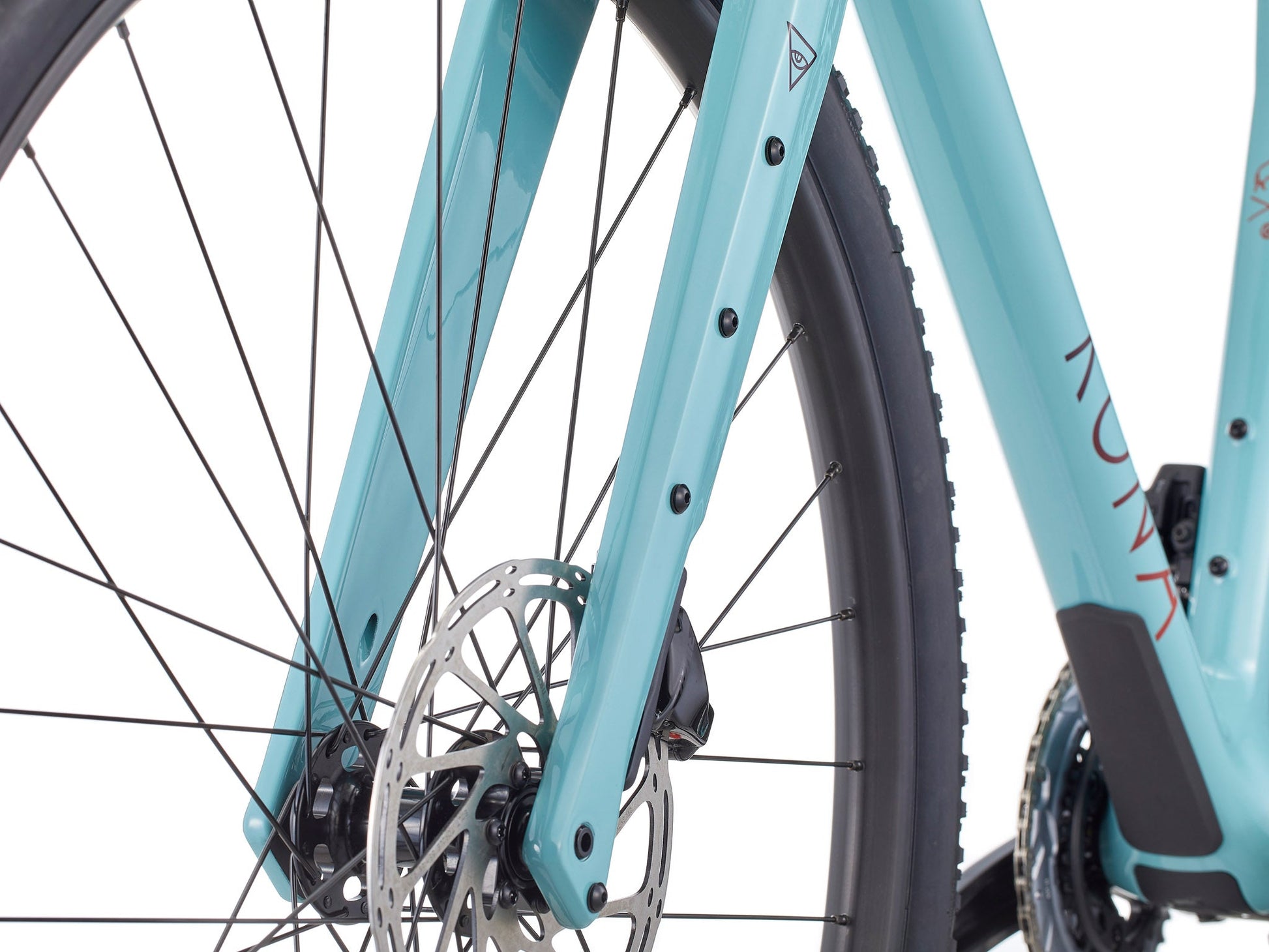

Fork - Kona Ouroboros Carbon, 420 axle to crown, tapered 1.5 (28.6 - 38.1), 100 x 12mm, internal brake and dynamo routing, native 160 flat mount front, 3-pack bosses + fender mounts
Crankarms - SRAM Rival DUB Wide
Chainrings - SRAM Rival 43/30 Wide

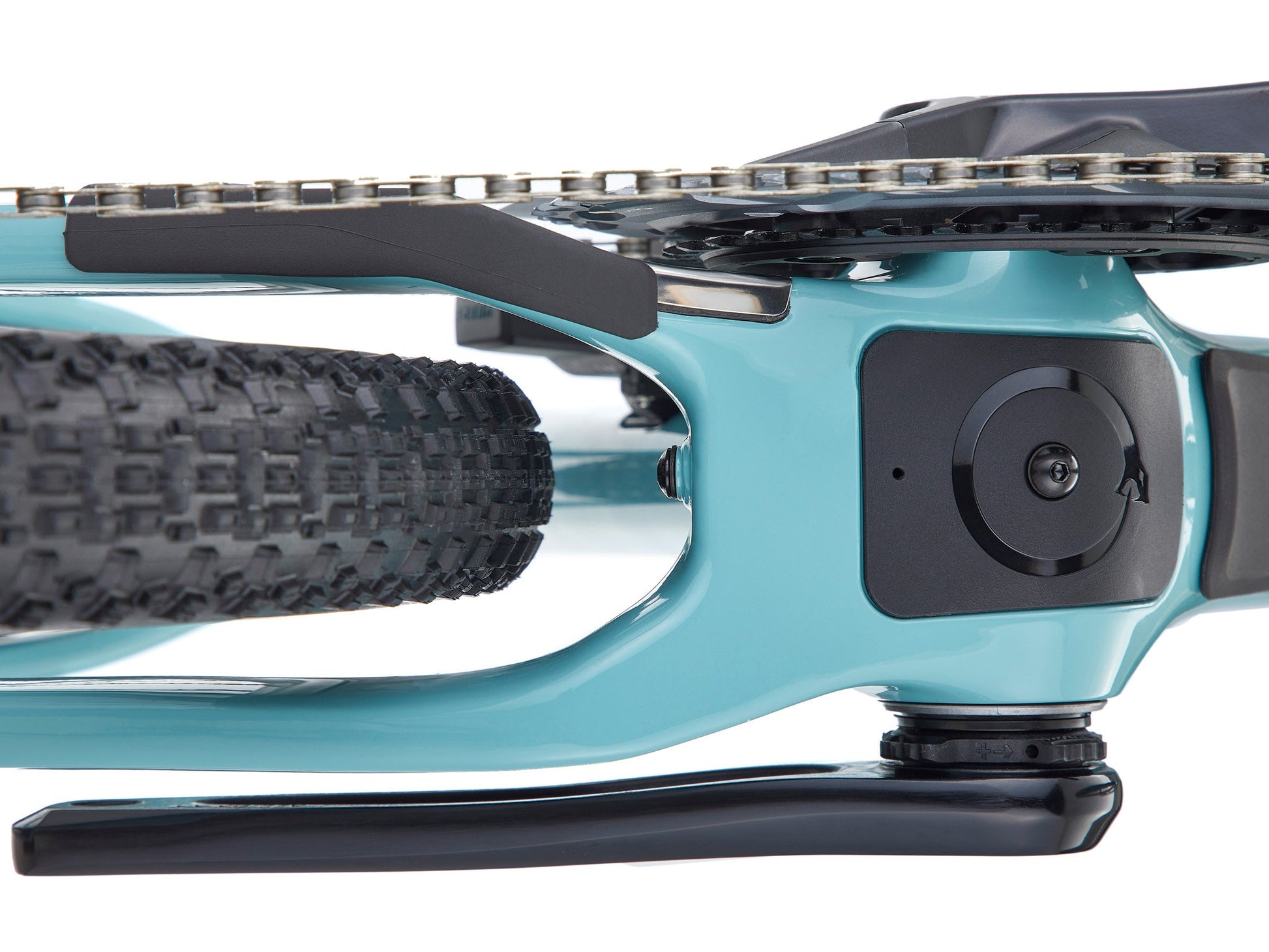

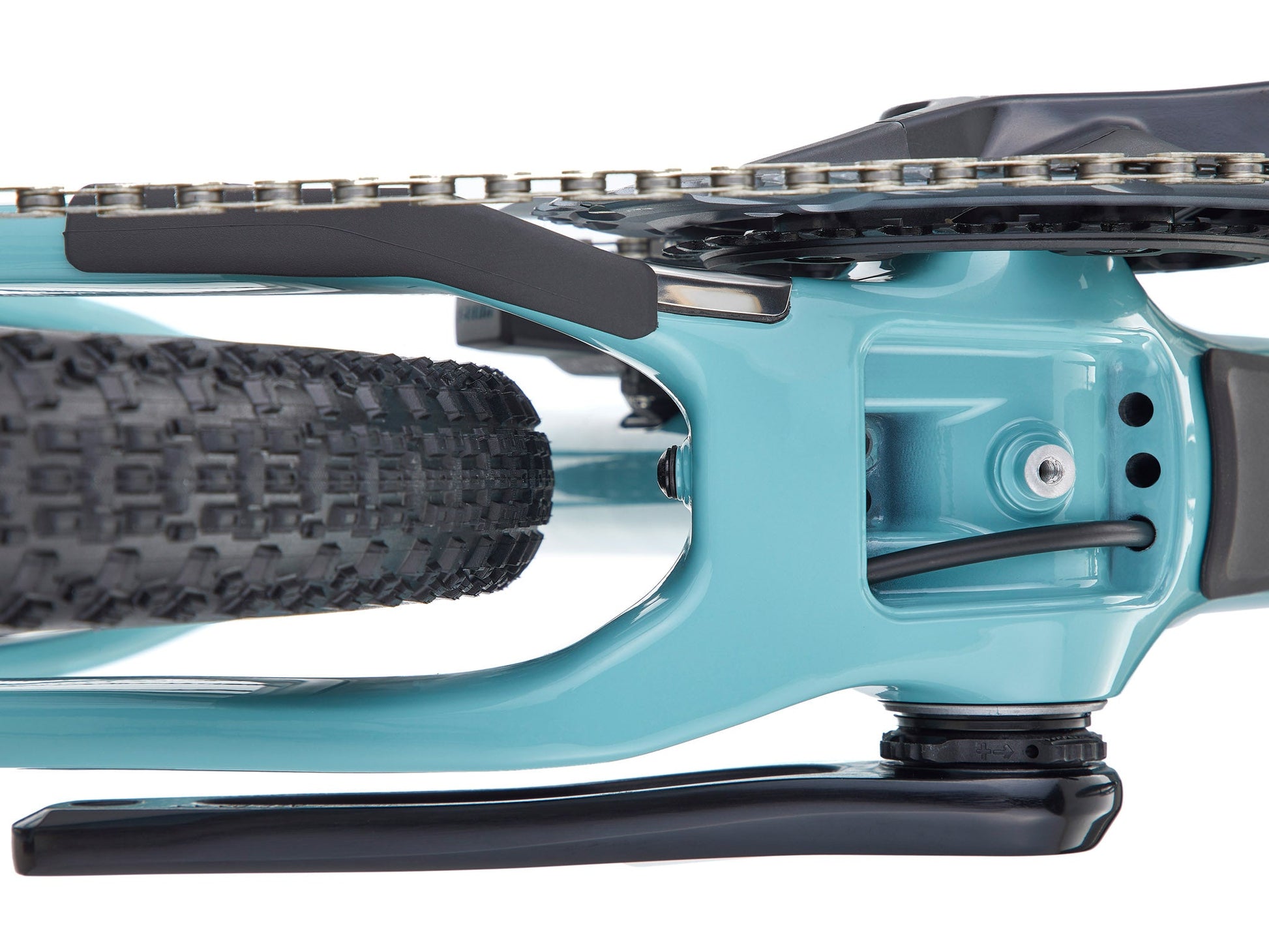

B/B - SRAM Press-Fit 86.5 DUB Wide
Chain - SRAM Rival 12 speed

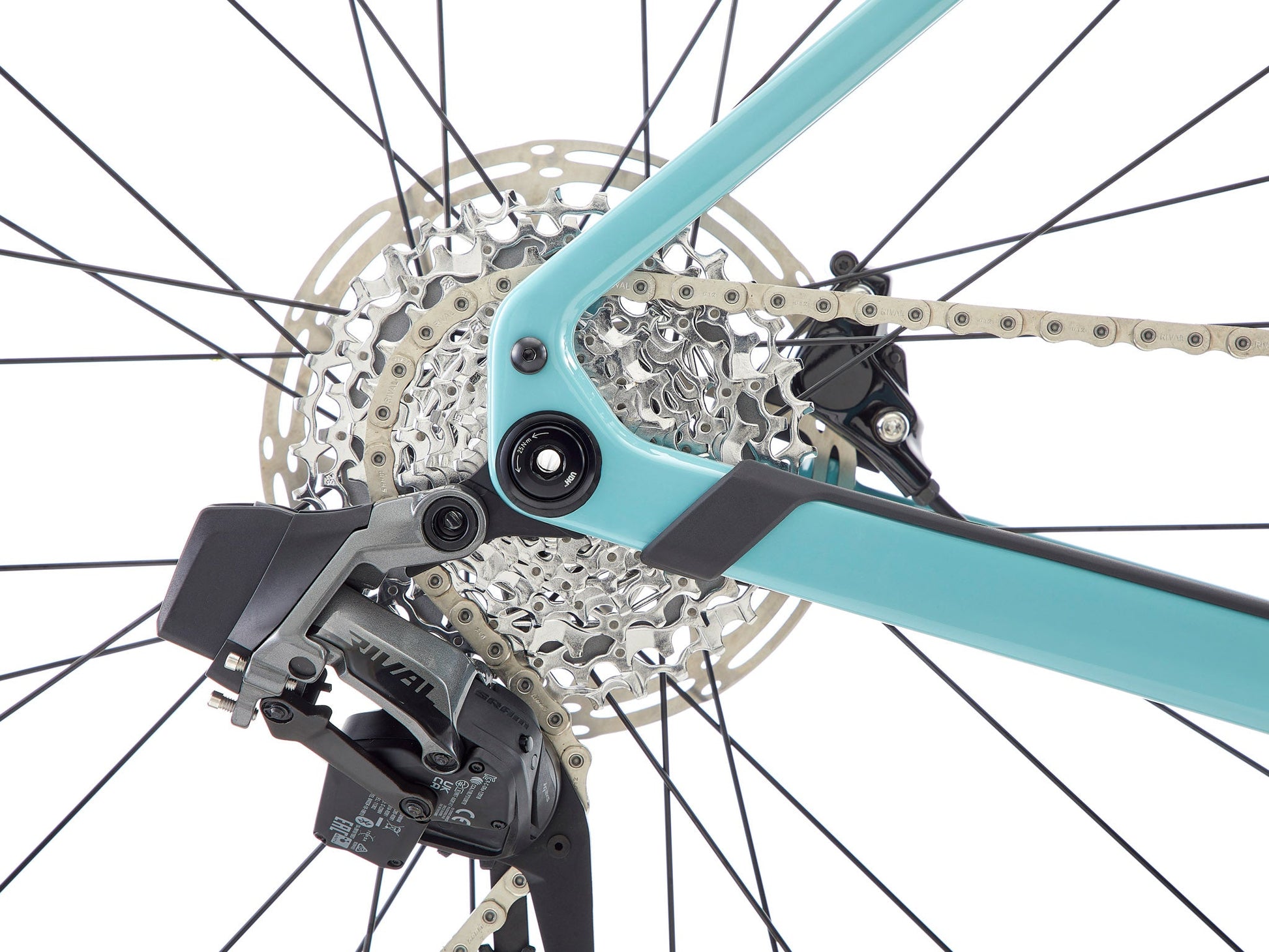

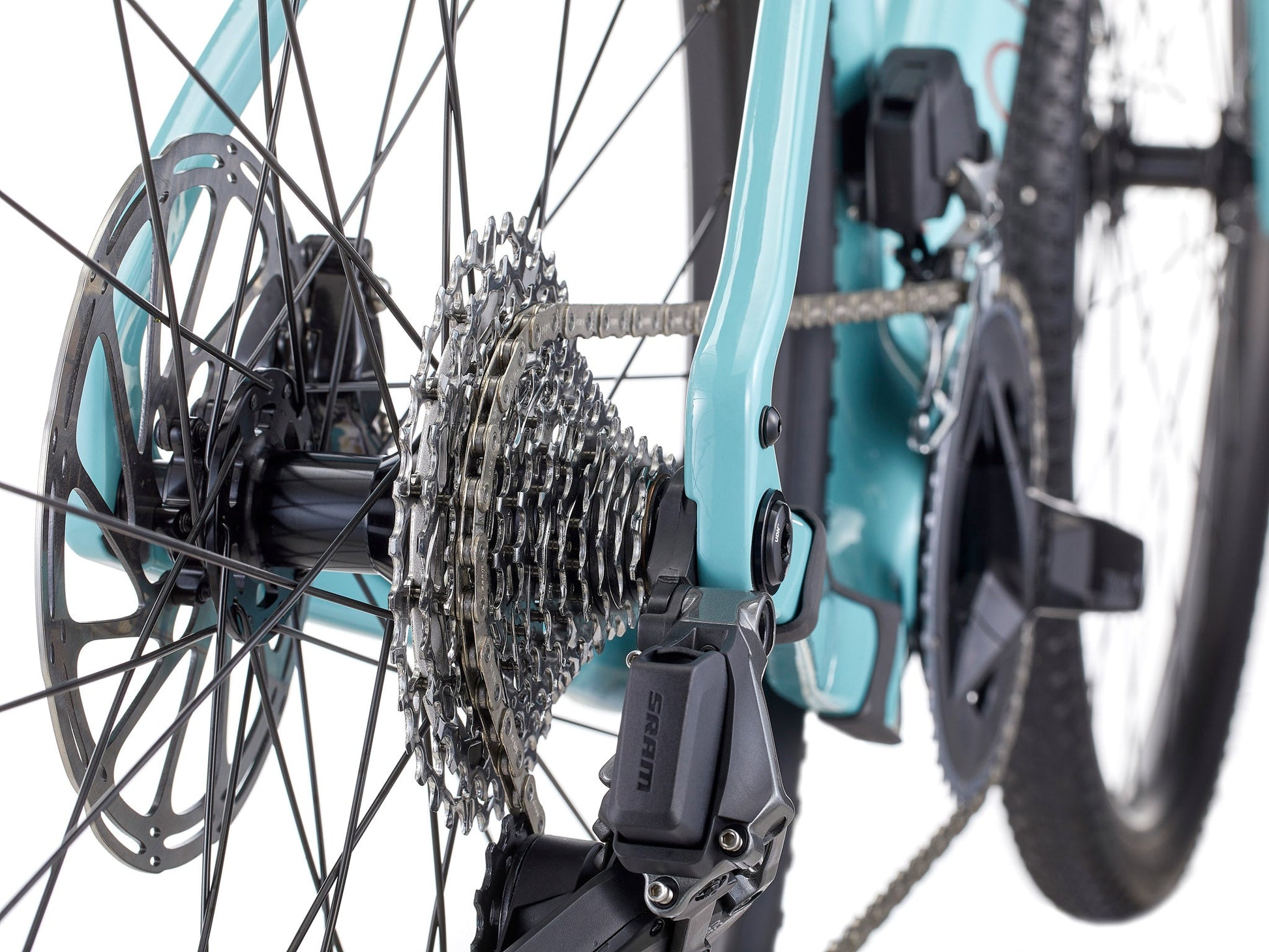

Cassette - SRAM Rival XG-1250 10-36t 12 speed XDR cassette
F/D - SRAM Rival ETAP AXS Wide
R/D - SRAM Rival ETAP AXS
Shifters - SRAM Rival ETAP AXS
Brake Calipers - SRAM Rival Flat Mount Hydraulic
Front Brake Rotor - SRAM Centerline 6-bolt 180mm

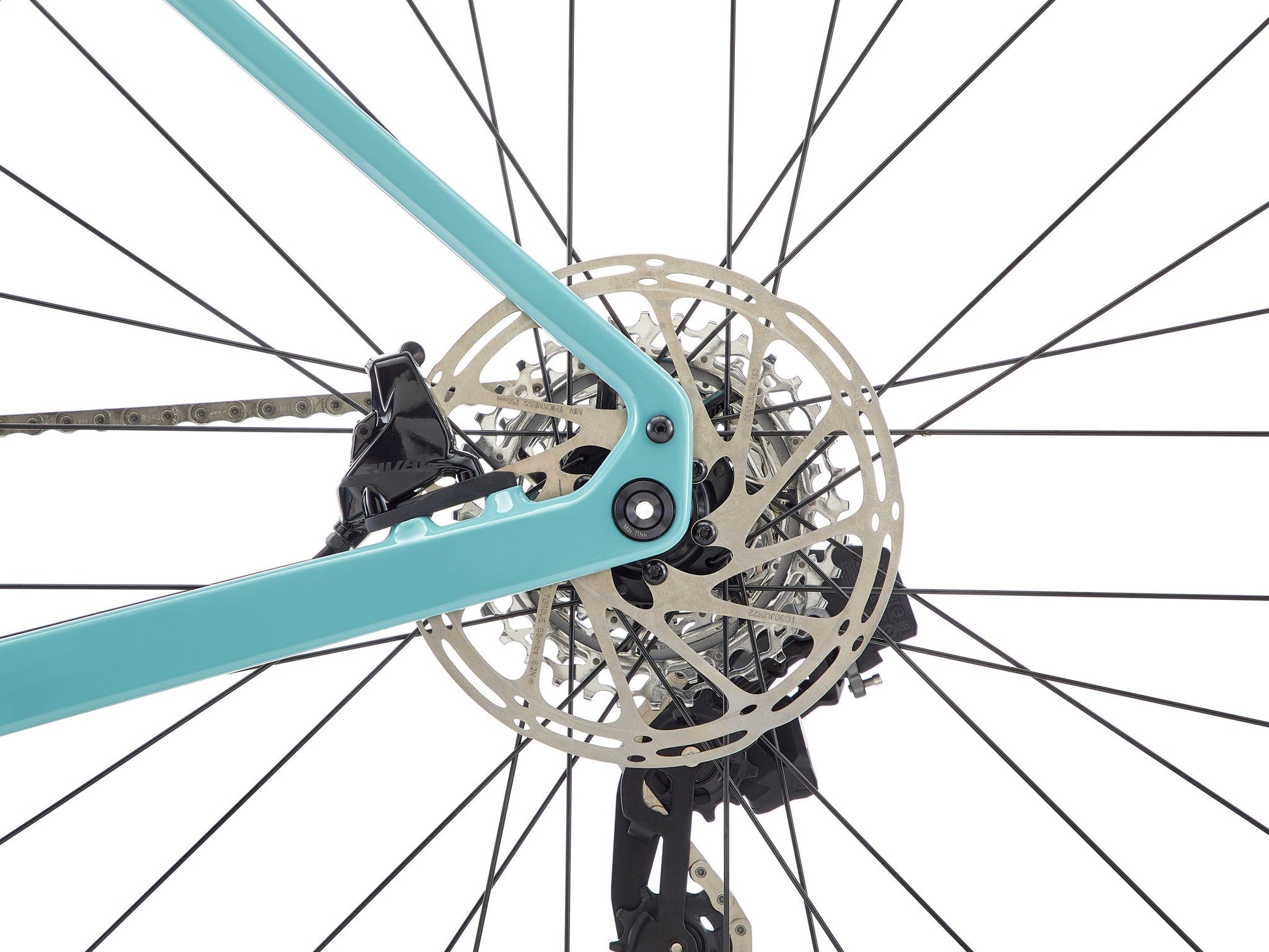

Rear Brake Rotor - SRAM Centerline 6-bolt 180mm
Brake Levers - SRAM Rival ETAP AXS
Headset - FSA Orbit No. 57, ZS 44/56

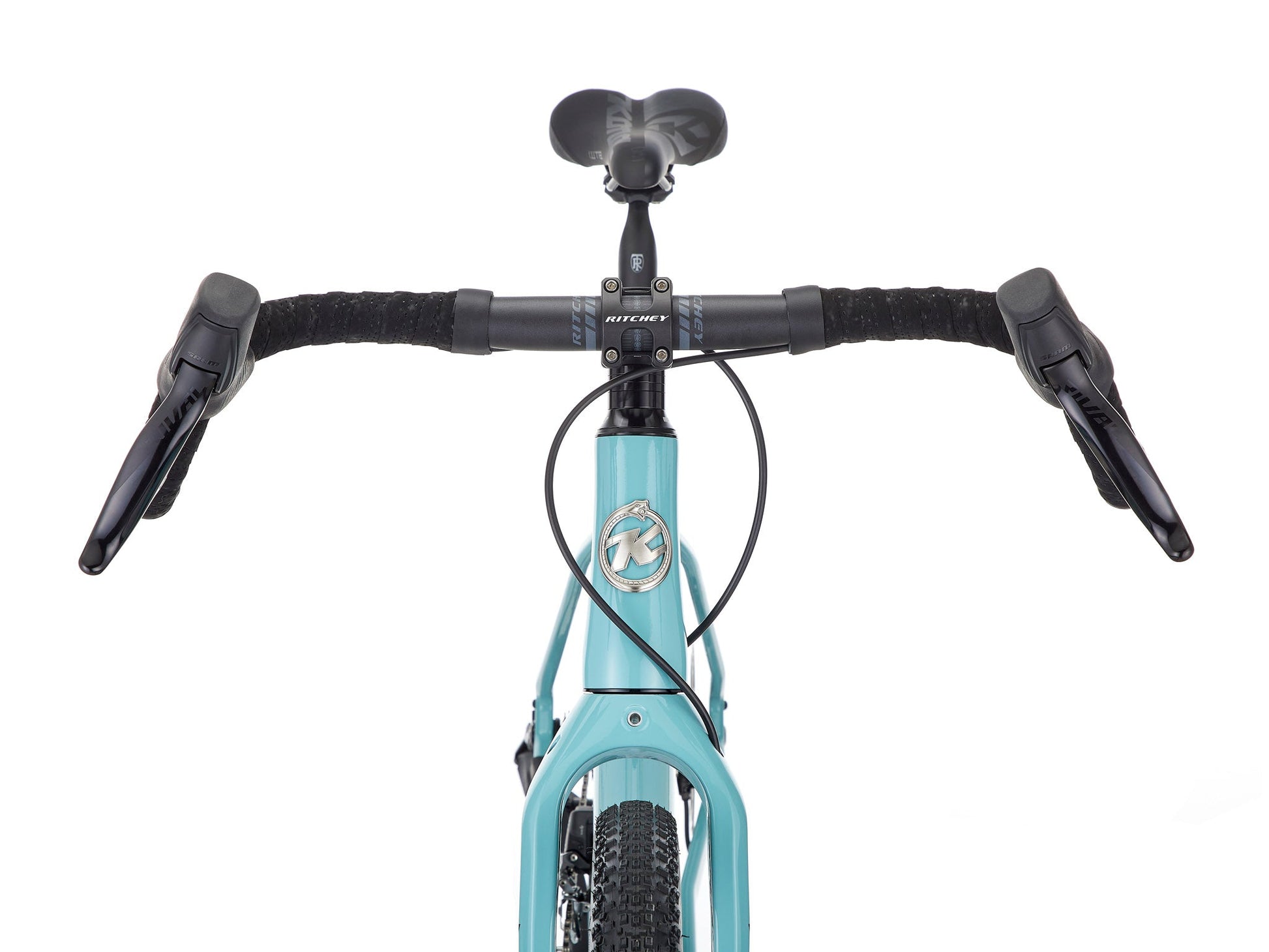

Handlebar - Ritchey Venturemax Comp/Venturemax XL Comp, 24-degree flare, 4.6 degree backsweep; 48-50: 460mm, 52-54: 480mm, 56: 500mm, 58: 520mm
Stem - Ritchey Trail Comp, 0-degree, 48-52: 45mm; 54-58: 60mm
Seatpost - Ritchey Link 20 WCS, 31.6mm, 20mm setback, 48-52: 350mm; 54-58: 400mm
Seat Clamp - Kona 34.9mm
Grips - Velo bar tape
Saddle - WTB Volt Medium Steel SL
Front Hub - KT-Taiwan QL-S3GR, 100 x 12, 32h, 6-bolt
Rear Hub - KT-Taiwan QL-DD4DR, 142 x 12, 32h, 6-bolt, XDR freehub, STAR ratchet
Spokes - Double butted stainless
Rims - WTB KOM i27 6069 alloy, 32h, TCS 2.0, with tubeless tape
Front Tire - Maxxis Rambler 700 x 45 TR EXO
Rear Tire - Maxxis Rambler 700 x 45 TR EXO
Paint Colour - Gloss Harbor Grey w/ Plum & Bloodstone Decals
Extras - batteries, charger
