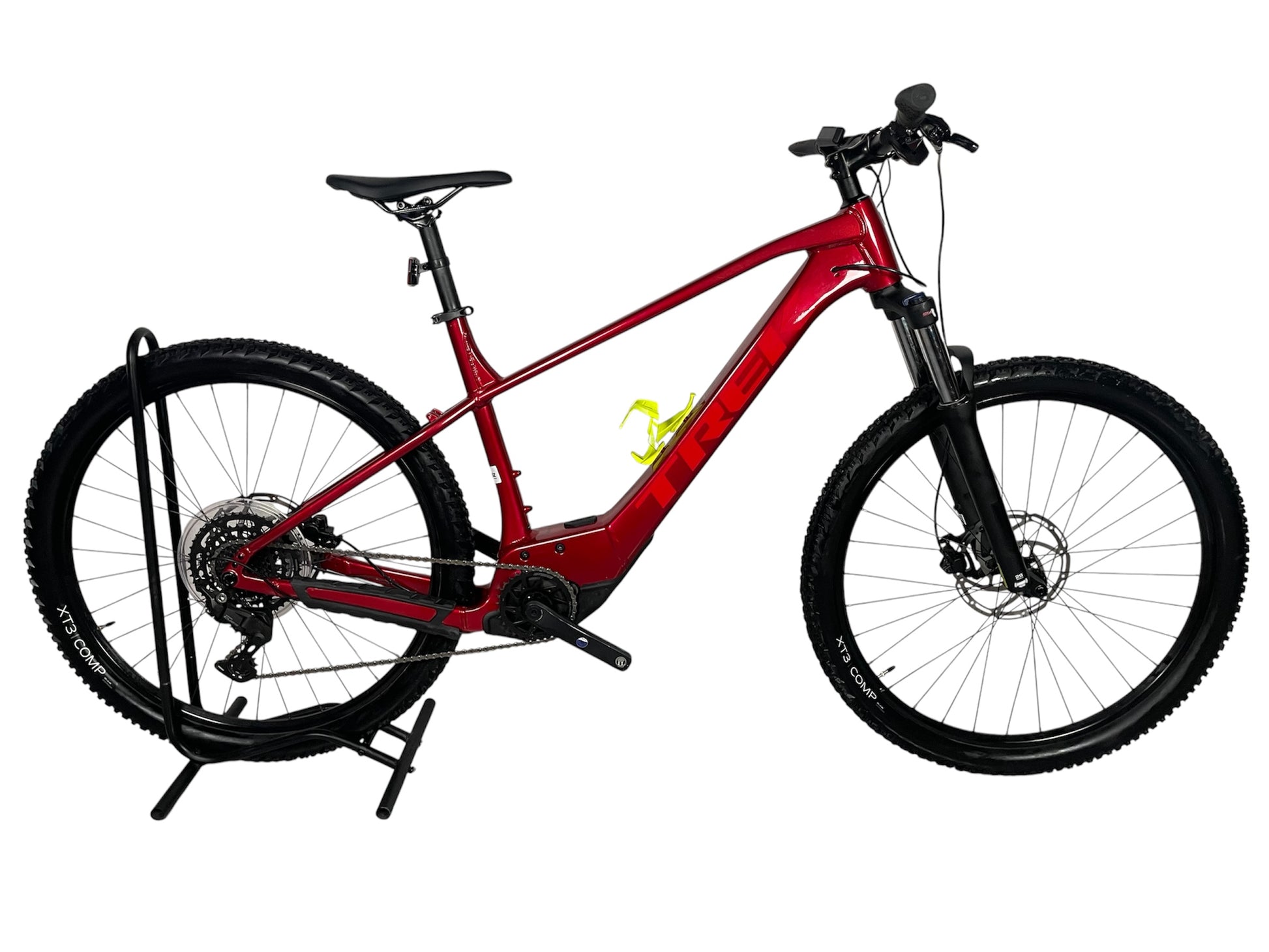

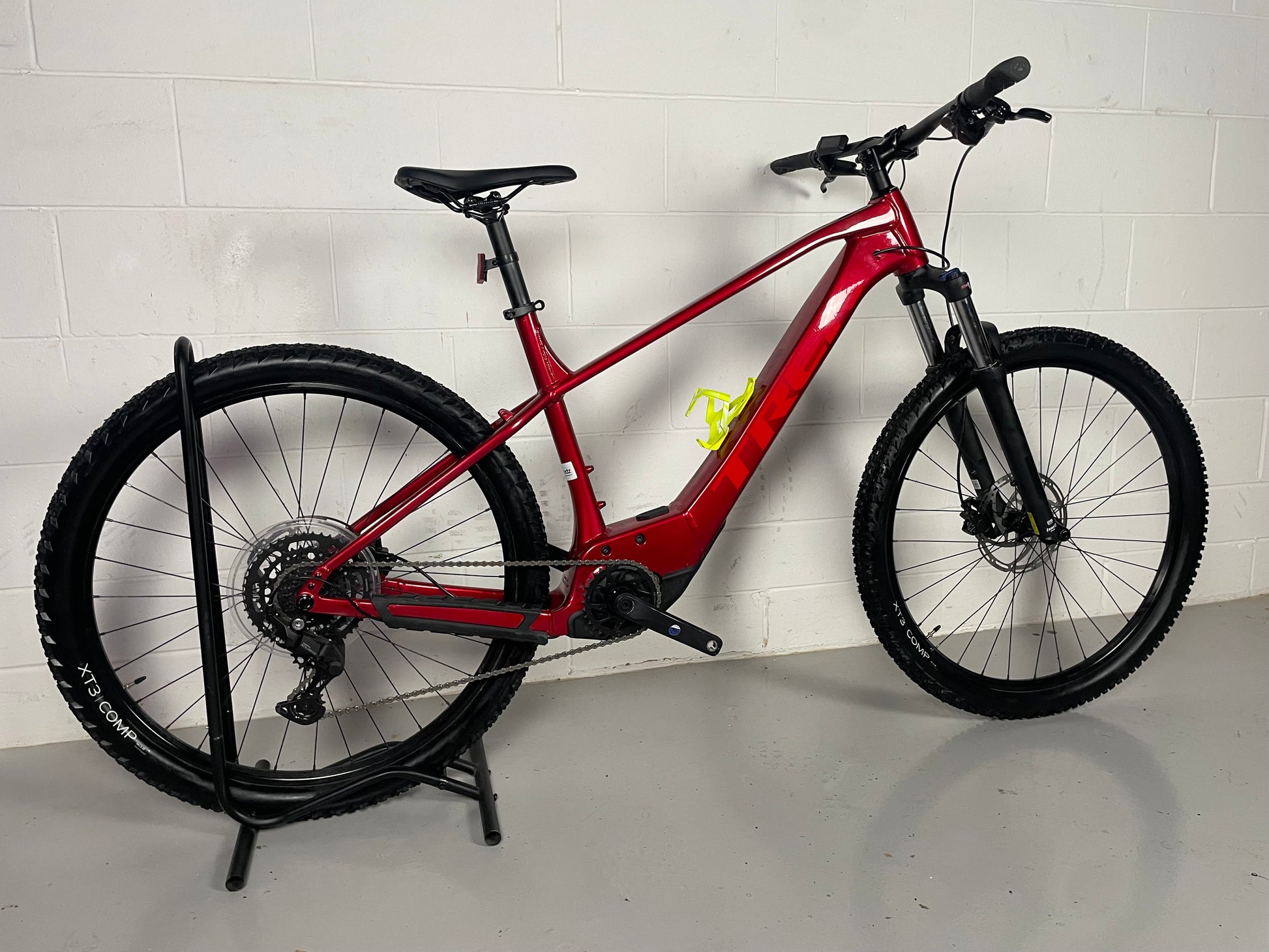

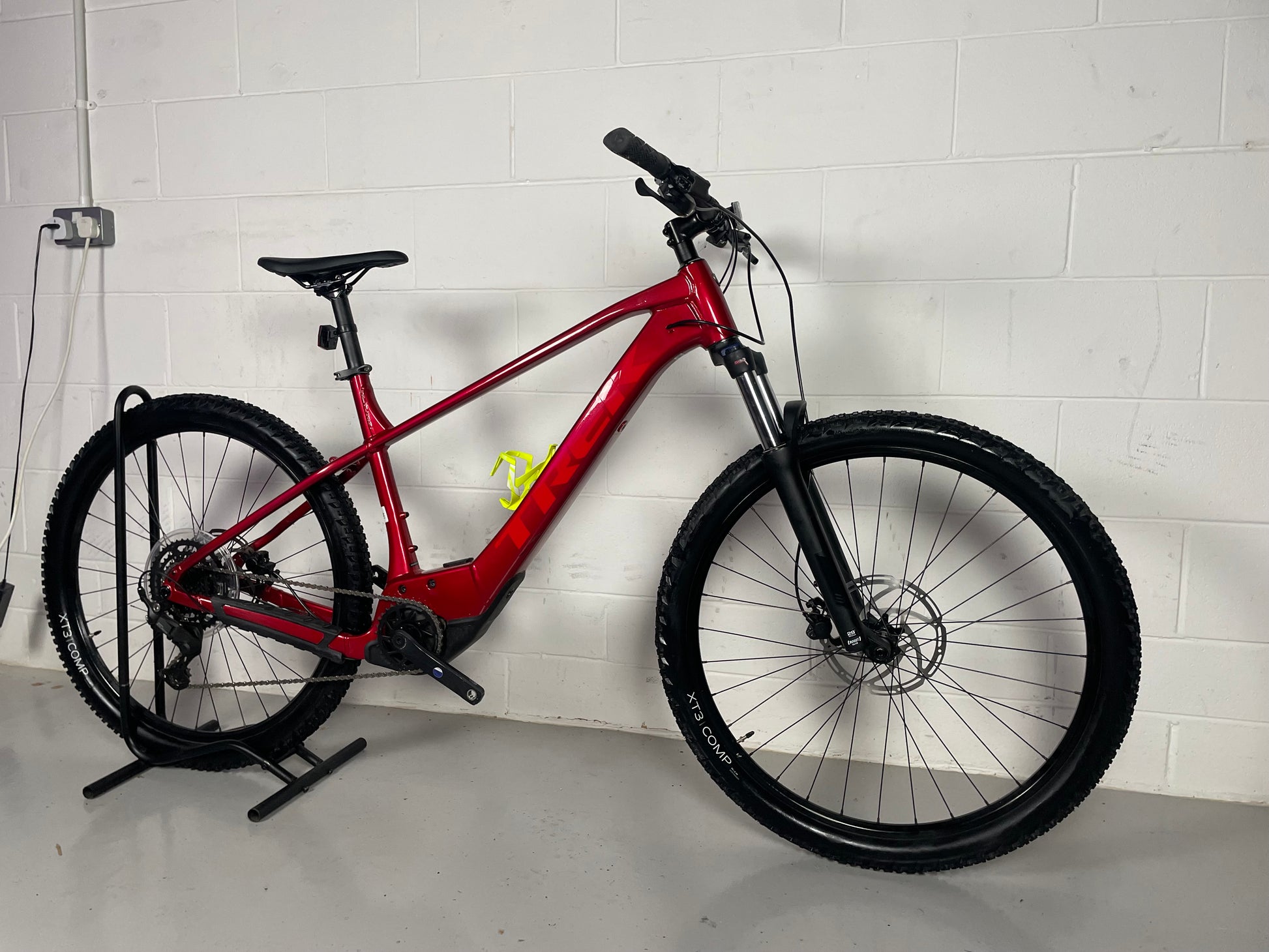

Trek Marlin+ 6 2024 Electric Mountain Bike-Only 66 Miles Rode
Tax included. Shipping calculated at checkout.
- Warranty Included
- Free Delivery
- Eco Friendly
Verfügbarkeit für Abholungen konnte nicht geladen werden
Find Your Perfect Fit.
Sizes vary by brand. When in doubt, size up.
| Size | Height | Frame |
|---|---|---|
| XS | 4'9" – 5'1" | XS / 14" |
| S | 5'1" – 5'6" | S / 16" |
| M Most Popular | 5'6" – 5'10" | M / 18" |
| L | 5'10" – 6'1" | L / 20" |
| XL | 6'1" and above | XL / 22" |
| Size | Height | Frame |
|---|---|---|
| XS | 4'9" – 5'1" | 46 cm |
| S | 5'1" – 5'6" | 50 cm |
| M Most Popular | 5'6" – 5'10" | 54 cm |
| L | 5'10" – 6'1" | 58 cm |
| XL | 6'1" and above | 62 cm |
| Wheel Size | Age (approx) | Height |
|---|---|---|
| 12" | 2 – 4 yrs | 2'8" – 3'3" |
| 14" | 3 – 5 yrs | 3'3" – 3'6" |
| 16" | 4 – 6 yrs | 3'5" – 4'0" |
| 20" Most Popular | 5 – 8 yrs | 3'11" – 4'3" |
| 24" | 7 – 11 yrs | 4'2" – 4'8" |
Not sure? Our team can help you find the right fit — just get in touch.
Ask the team →Why this bike?

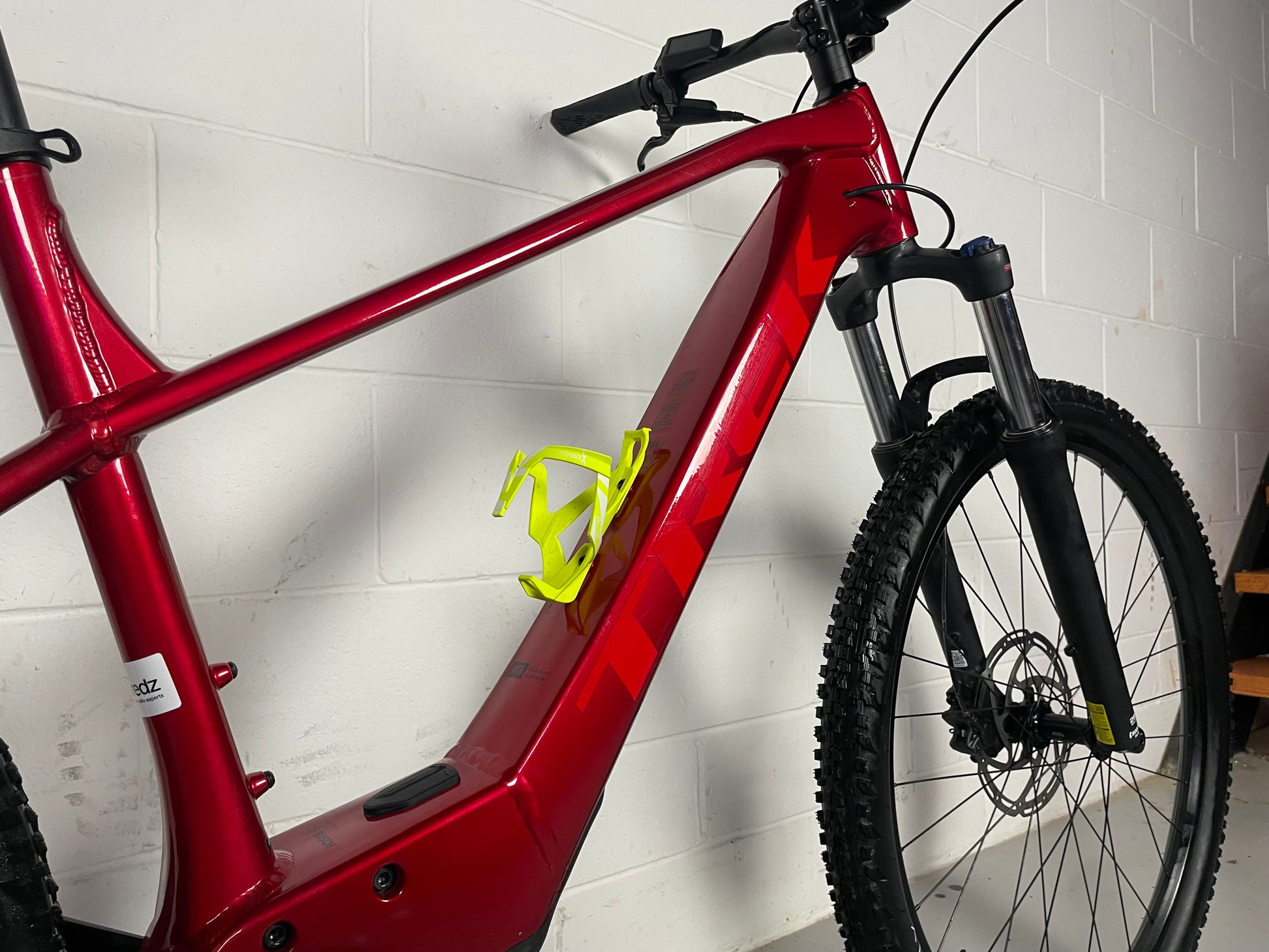

Size XL. Only 66 Miles Rode. 1 Year warranty involved. SR Suntour XCM 34 Forks on the front suspension With 100mm of travel offering a very comfortable ride with the ability to handle anything that’s thrown at it. 400Wh Battery powering you up to 100Km per charge. This is the battery you want if you want the longest lasting charge. Bosch Active Line Plus Motor to make peddling a breeze with a beautiful “Blaze” Colour way to finish it off.
Our price £1,599
Retail price £2,100
Saving yourself £500
Any questions? Don’t hesitate to contact the store. Our team is always happy to help.
We accept all major payment methods including PayPal, credit/debit cards and finance options.
All Cycle To Work schemes are accepted at MCR BIKES.
Short on money? Buy Now, Pay Later options are available via Klarna, ClearPay and PayPal.
Every bike is fully checked by our in-store mechanics allowing us to confidently give 1 year warranty on your bike. Fast, professionally packed and fully tracked delivery via Royal Mail.
Trusted by thousands of riders. Check out our 200+ 5-star Trustpilot reviews and our 400+ 5-star eBay reviews.
Become a part of the MCR BIKES community today and find out why we are the fastest growing bike shop in the UK.
Specification Below
|
MOTOR |
Bosch Active Line Plus, 50Nm |
|
BATTERY |
Bosch CompactTube 400Wh |
|
COMPUTER |
Bosch Purion 200 |
|
CHARGER |
Bosch standard 2A, 230V, smart system |
|
FRAME |

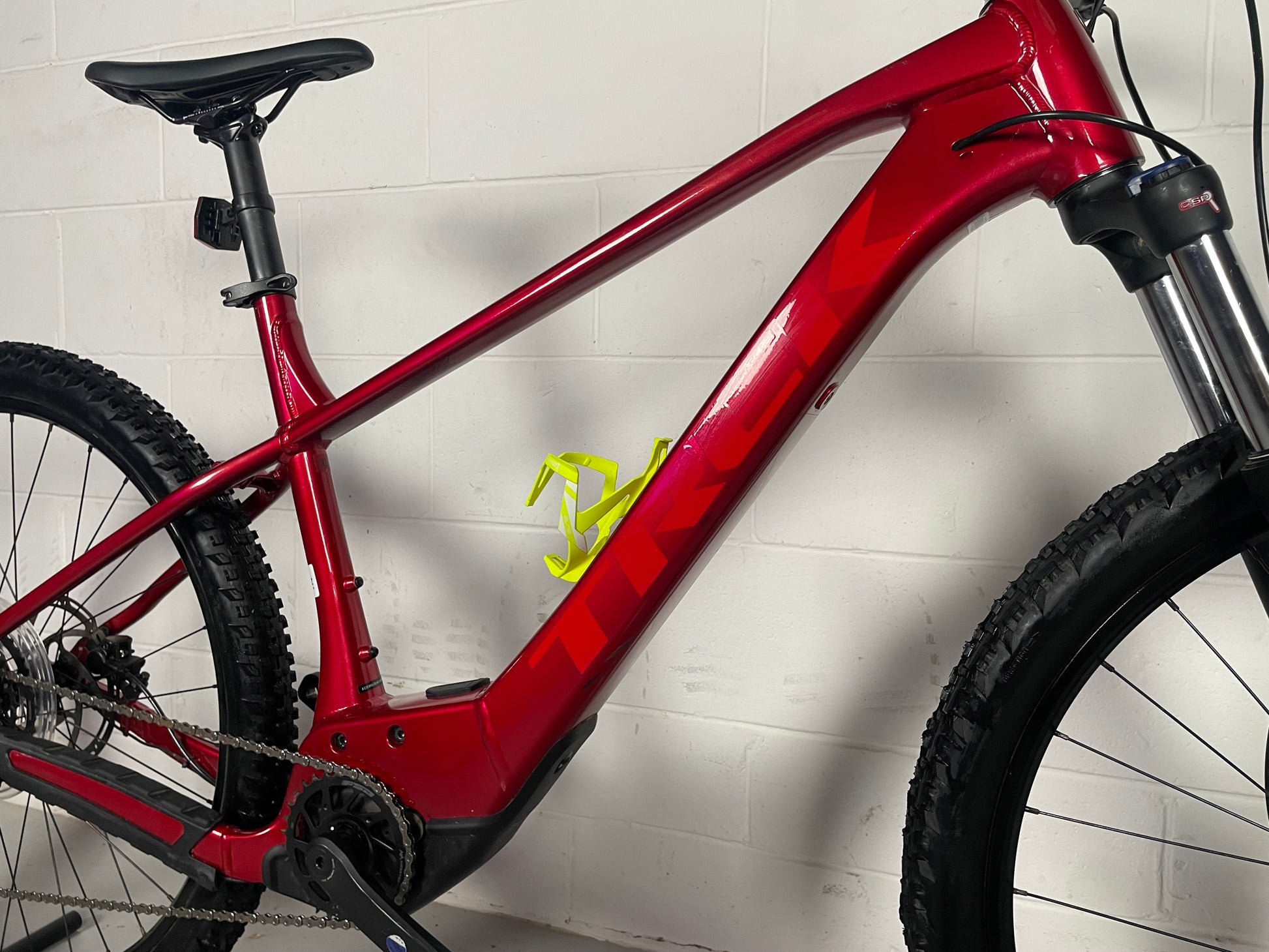

Size: XS Alpha Gold Aluminium, curved top tube, tapered head tube, internal routing, rack, mudguard and kickstand mount, UDH, Boost148, 12mm thru axle |
|
|
Size: S , M , L , XL Alpha Gold Aluminium, tapered head tube, internal routing, rack, mudguard and kickstand mount, UDH, Boost148, 12mm thru axle |
|
FORK |
Size: XS SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44mm offset, Boost110, 15 mm thru axle, 100mm travel |
|
|
Size: S , M , L , XL SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44mm offset, Boost110, 15 mm thru axle, 120mm travel |
|
MAX COMPATIBLE FORK TRAVEL |
See service manual |
|
HUB FRONT |
Bontrager alloy, sealed bearing, alloy axle, CenterLock, Boost110, 15mm thru axle |
|
HUB REAR |
Formula CL-3248, alloy, CentreLock, Shimano 8/9/10 freehub, Boost148, 12mm thru axle |
|
SKEWER REAR |
Bontrager Switch thru-axle, removable lever |
|
RIM |
Bontrager Connection, double-wall, 32-hole, 20mm width, Presta valve |
|
TYRE |
Size: XS , S Bontrager XT3 Comp, wire bead, 30 tpi, 27.5x2.40" |
|
|
Size: M , L , XL Bontrager XT3 Comp, wire bead, 30 tpi, 29x2.40" |
|
MAX TYRE SIZE |
Frame: 29x2.60" (XS: 27.5x2.60"), Fork: See manufacturer |
|
SHIFTER |
Shimano U4000, 9-speed |
|

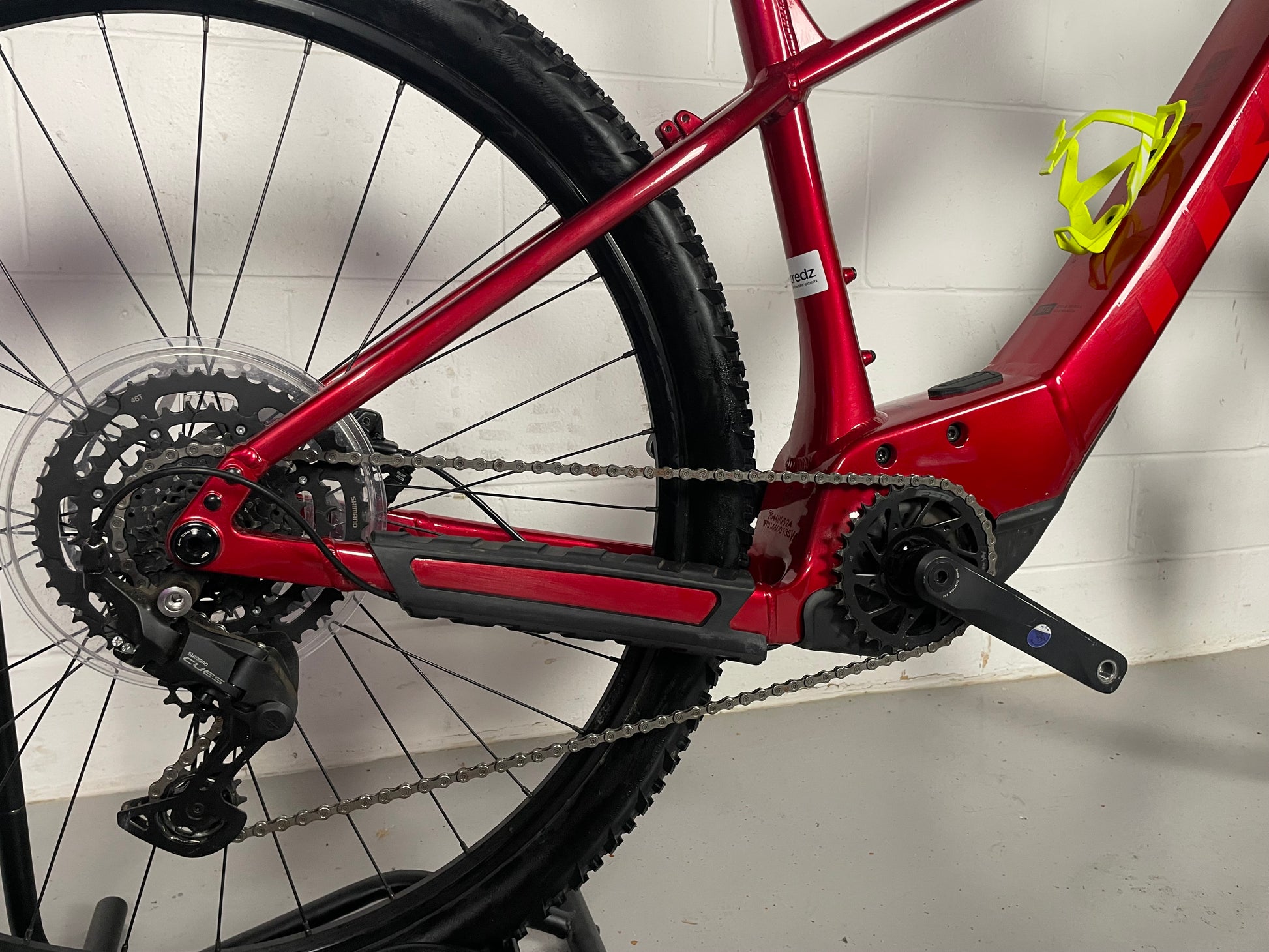

REAR DERAILLEUR |
Shimano CUES U4000 |
|
CRANK |
FSA CK-220, 165mm length |
|
CHAINRING |
FSA, 32T, steel |
|
CASSETTE |
Shimano LINKGLIDE LG300, 11-46, 9-speed |
|
CHAIN |
Shimano LG500, 9/10/11-speed |
|
PEDAL |
VP-536 nylon platform |
|
MAX. CHAINRING SIZE |
1x: 36T, min 32T |
|
SADDLE |
Bontrager Arvada, steel rails, 138mm width |
|
SEATPOST |
Size: XS , S Bontrager alloy, 31.6mm, 12mm offset, 330mm length |
|
|
Size: M Bontrager alloy, 31.6mm, 12mm offset, 360mm length |
|
|
Size: L , XL Bontrager alloy, 31.6mm, 12mm offset, 400mm length |
|

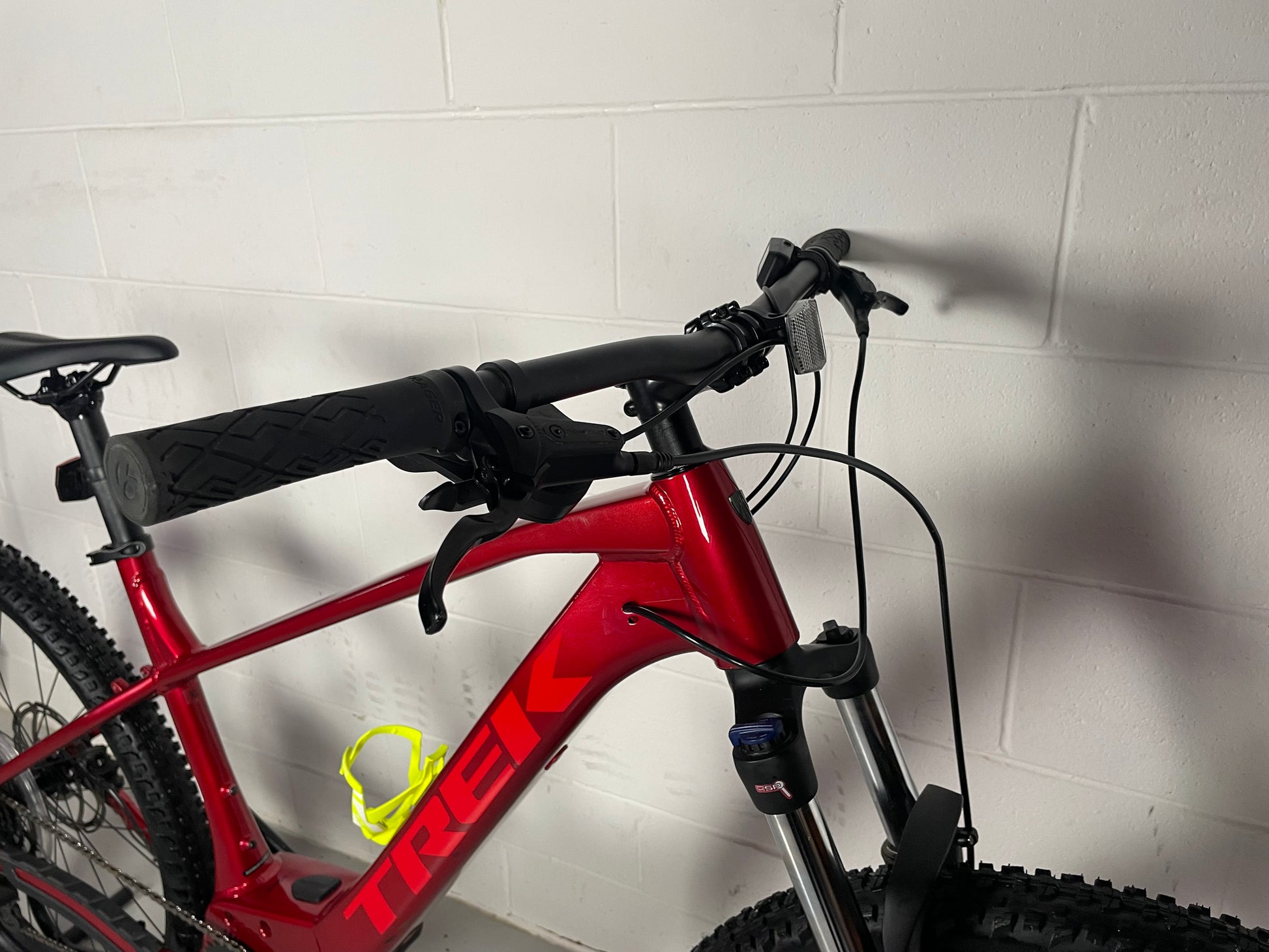

HANDLEBAR |
Size: XS , S Bontrager alloy, 31.8mm, 15mm rise, 720mm width |
|
|
Size: M , L , XL Bontrager alloy, 31.8mm, 15mm rise, 750mm width |
|
GRIPS |
Bontrager XR Endurance Comp, lock-on |
|
STEM |
Size: XS , S Bontrager Comp, 31.8mm, 7-degree, 35mm length |
|
|
Size: M , L Bontrager Comp, 31.8mm, Blendr compatible, 7-degree, 50mm length |
|
|
Size: XL Bontrager Comp, 31.8mm, Blendr compatible, 7-degree, 60mm length |
|
HEAD SET |
Semi-integrated, loose ball bearing, 1-1/8" top, 1.5" bottom |
|
BRAKE ROTOR |
Tektro, CentreLock, 203mm |
|
BRAKE SET |
Tektro HD-M275 hydraulic disc |
|
ROTOR SIZE |
Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer |
|
WEIGHT |
M - 22.45 kg / 49.5 lb (with tubes) |
