Orbea Occam H20 2021 Mountain Bike
Tax included. Shipping calculated at checkout.
- Warranty Included
- Free Delivery
- Eco Friendly
Couldn't load pickup availability
Find Your Perfect Fit.
Sizes vary by brand. When in doubt, size up.
| Size | Height | Frame |
|---|---|---|
| XS | 4'9" – 5'1" | XS / 14" |
| S | 5'1" – 5'6" | S / 16" |
| M Most Popular | 5'6" – 5'10" | M / 18" |
| L | 5'10" – 6'1" | L / 20" |
| XL | 6'1" and above | XL / 22" |
| Size | Height | Frame |
|---|---|---|
| XS | 4'9" – 5'1" | 46 cm |
| S | 5'1" – 5'6" | 50 cm |
| M Most Popular | 5'6" – 5'10" | 54 cm |
| L | 5'10" – 6'1" | 58 cm |
| XL | 6'1" and above | 62 cm |
| Wheel Size | Age (approx) | Height |
|---|---|---|
| 12" | 2 – 4 yrs | 2'8" – 3'3" |
| 14" | 3 – 5 yrs | 3'3" – 3'6" |
| 16" | 4 – 6 yrs | 3'5" – 4'0" |
| 20" Most Popular | 5 – 8 yrs | 3'11" – 4'3" |
| 24" | 7 – 11 yrs | 4'2" – 4'8" |
Not sure? Our team can help you find the right fit — just get in touch.
Ask the team →Why this bike?
Size Large. 1 Year warranty included.
FOX FLOAT 34 Performance Forks on the front suspension with 140mm of travel and FOX FLOAT DPS Performance EVOL rear shock offering 140mm on the rear offering a very comfortable ride with the ability to handle anything that's thrown at it.
Shimano Deore M6100 Brakes and Shimano Deore XT M8100 12-Speed Derailleur to make peddling a breeze with a beautiful "Coral Sunrise" Colour way to finish it off.
Our price £1,399
Retail price £2,999
Saving yourself £1,600
Any questions? Don't hesitate to contact the store. Our team is always happy to help.
We accept all major payment methods including PayPal, credit/debit cards and finance options.
All Cycle To Work schemes are accepted at MCR BIKES.
Short on money? Buy Now, Pay Later options are available via Klarna, ClearPay and PayPal.
Every bike is fully checked by our in-store mechanics allowing us to confidently give 1 year warranty on your bike. Fast, professionally packed and fully tracked delivery via Royal Mail.
Trusted by thousands of riders. Check out our 200+ 5-star Trustpilot reviews and our 400+ 5-star eBay reviews.
Become a part of the MCR BIKES community today and find out why we are the fastest growing bike shop in the UK.
Specification Below
FRAME: Aluminum, Hydroformed high-polished triple-butted alloy, molded chainstay and down tube protection
WHEEL SIZE: 29"
REAR TRAVEL: 140mm

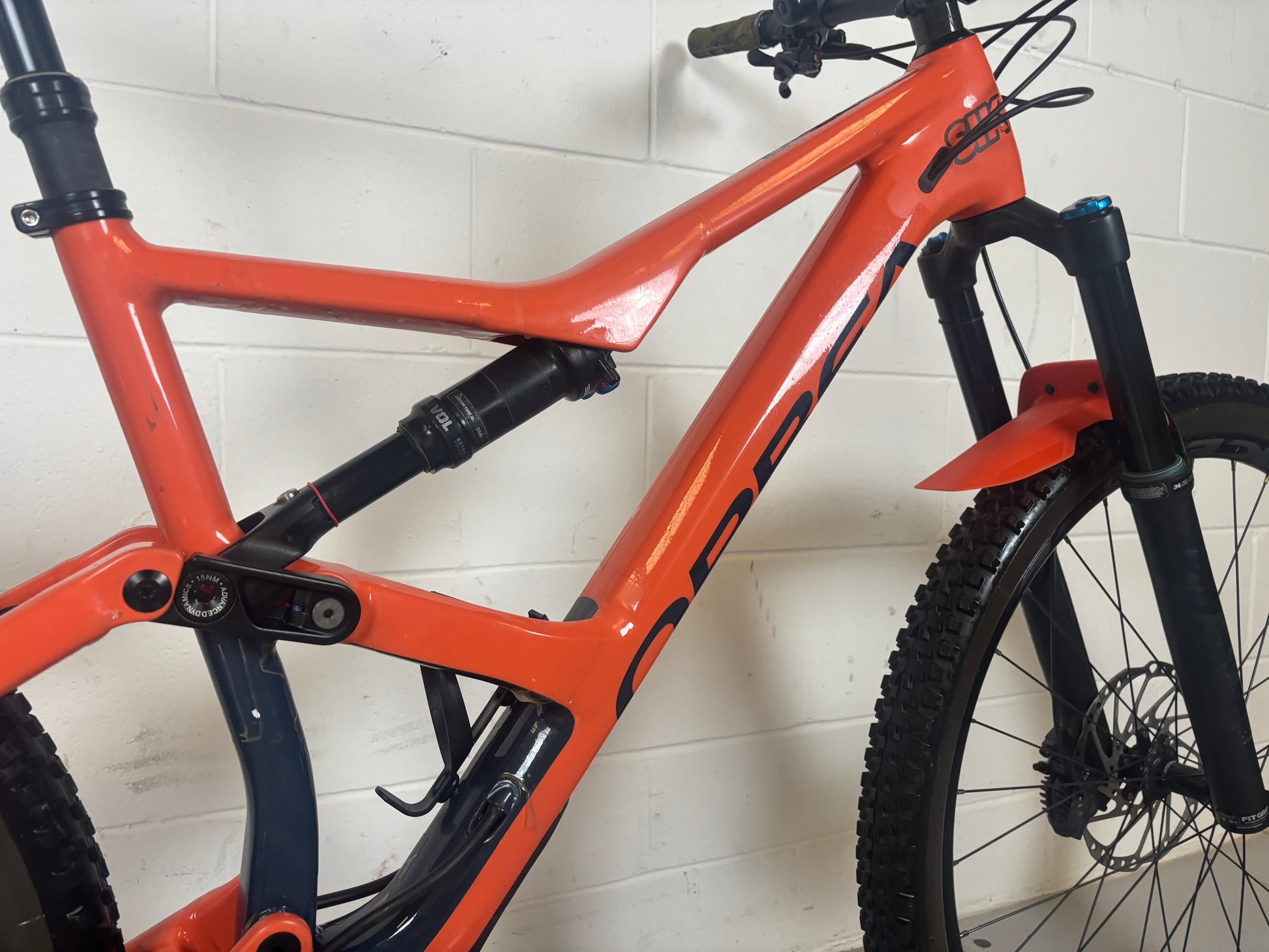

REAR SHOCK: FOX FLOAT DPS Performance, EVOL, 3-position adjust, custom tune, 210mm x 50mm (Upgrade option: FOX FLOAT DPX2 Factory, EVOL, 3-position adjust, Kashima coating)
FORK: FOX FLOAT 34 Performance, GRIP damper, 3-position adjust, 44mm offset (Upgrade options: FOX FLOAT 34 Factory, FIT4 damper, Kashima coating, 44mm offset; FOX FLOAT 36 Factory, GRIP2 damper, Kashima coating, 44mm offset)
FORK TRAVEL: FOX 34: 140mm / FOX 36: 150mm
HEAD TUBE: Tapered, 1.125" top, 1.5" bottom
HEADSET: ACROS, alloy, integrated

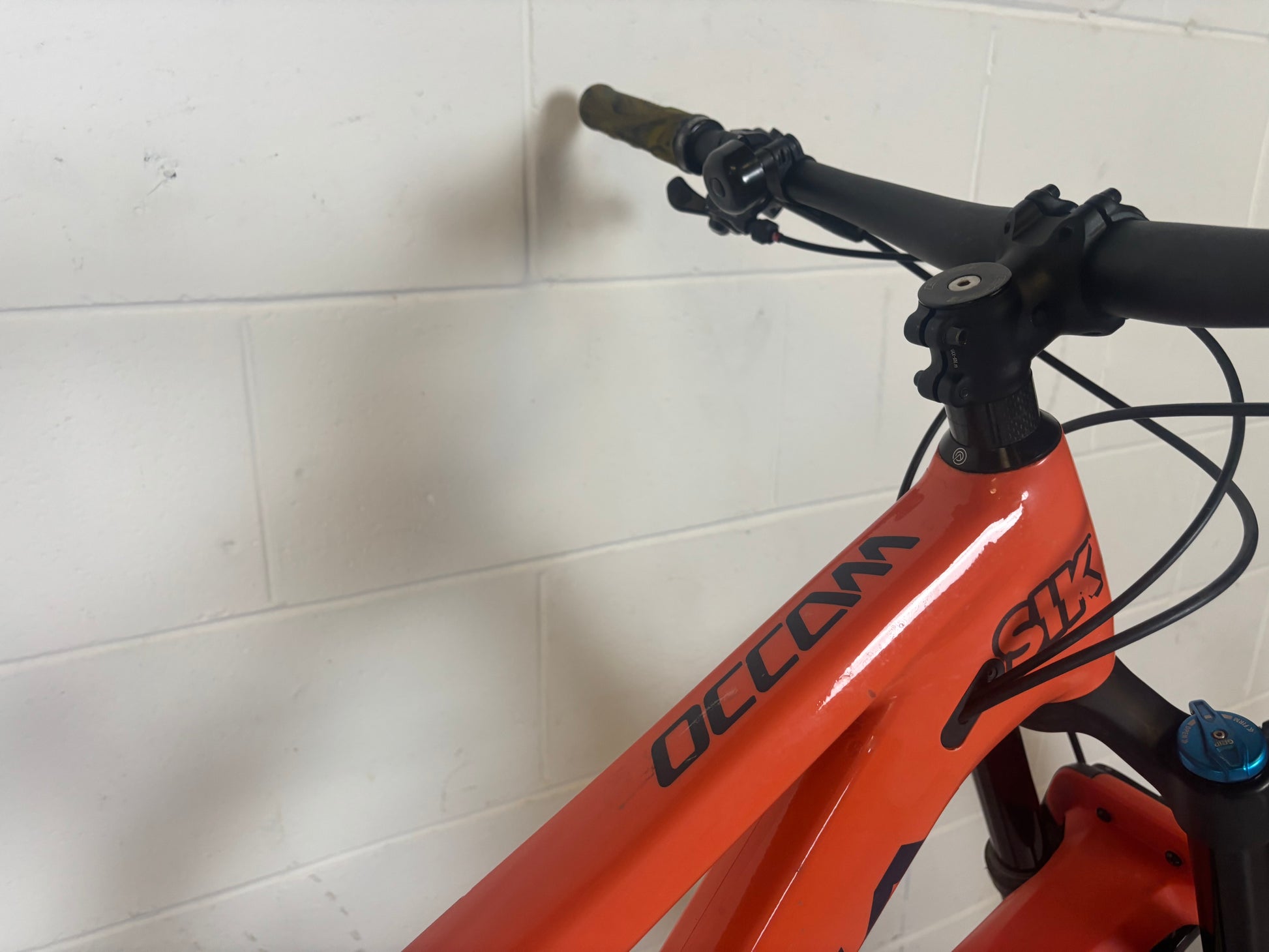

HANDLEBAR: OC1, 35mm clamp diameter, 12mm rise, 780mm width (Upgrade option: Race Face Aeffect, 35mm clamp, 20mm rise, 780mm width)
STEM: OC1, 3D forged alloy, 35mm bar clamp, 7° rise, 55mm length (LG) (Upgrade option: Race Face Aeffect R, 35mm bar clamp, 50mm length)
BRAKES: Shimano Deore M6100, 2-piston (Upgrade options: Shimano Deore XT M8120, 4-piston; Shimano Deore M6120, 4-piston)
BRAKE LEVERS: Shimano Deore M6100 (Upgrade options: Shimano Deore XT M8120, Shimano Deore M6120)
DRIVETRAIN: 1x
SHIFTERS: Shimano SLX M7100, 12-speed, I-SPEC EV bracket
FRONT DERAILLEUR: None

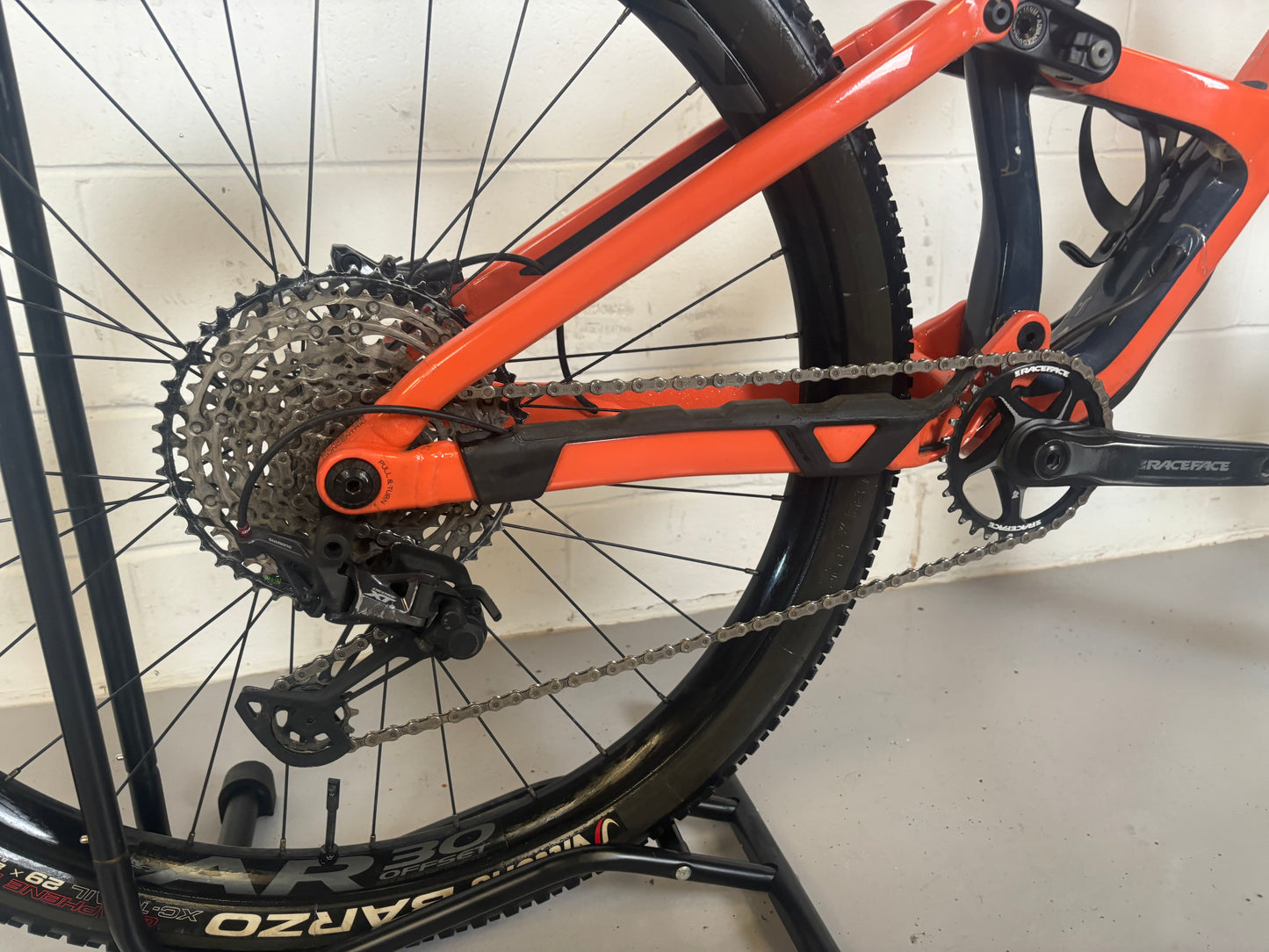

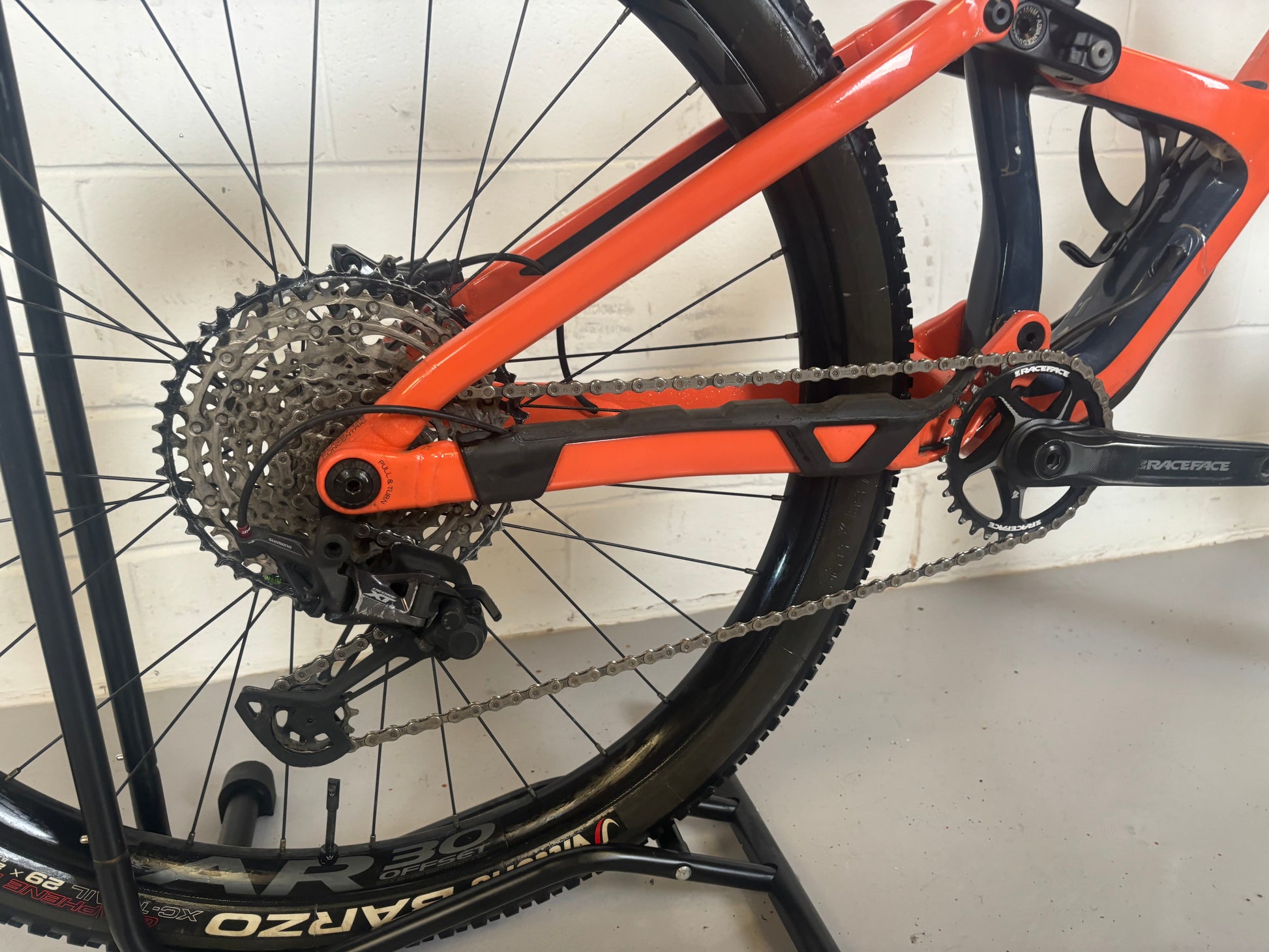

REAR DERAILLEUR: Shimano Deore XT M8100, 12-speed, SGS cage, SHADOW RD+
CRANKS: Race Face Aeffect, 175mm (LG)
CHAINRINGS: Race Face Aeffect, 32 tooth
BOTTOM BRACKET: 73mm BSA threaded
CHAIN: Shimano Deore M6100, 12-speed
CASSETTE: Shimano SLX M7100, 12-speed, 10-51 tooth
RIMS: Race Face AR 30c wheelset, TLR (Upgrade option: DT Swiss M-1900 Spline 30c wheelset)
HUBS: Race Face AR 30c wheelset, 110x15mm Boost front, 148x12mm Boost rear, MICRO SPLINE driver (Upgrade option: DT Swiss M-1900 Spline 30c wheelset)
TIRES: Front: Maxxis High Roller II, Dual compound, EXO, TR, 60 TPI, 29" x 2.5" / Rear: Maxxis Rekon, Dual compound, EXO, TR, 60 TPI, 29" x 2.4" (Front upgrade: Maxxis Minion DHF 29"x2.5" / Rear upgrade: Maxxis Minion DHR II 29"x2.4")
SADDLE: fi'zi:k Taiga S, alloy rails (Upgrade option: fi'zi:k Taiga, Kium rails)
SEATPOST: OC2 dropper, 170mm drop (LG)
SEATPOST DIAMETER: 31.6mm
REAR DROPOUT: 148x12mm Boost
MAX TIRE SIZE: 29" x 2.6"
WARRANTY: Lifetime frame, 2 years paint and finish
COLOUR: Coral Sunrise
